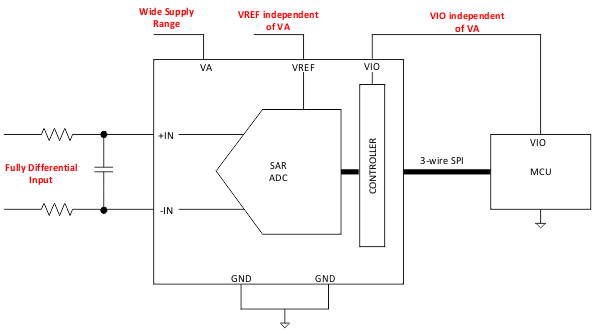

ADC161S626 - 产品图解:
ADC161S626-16 位、50 至 250 kSPS、差动输入、微功耗 ADC
ADC161S626-精密ADC(<=10MSPS)-模数转换器-数据转换器
承诺原装正品
专营TI,真正优化您的供应链
TI产品 - ADC161S626介绍
ADC161S626 - 16 位、50 至 250 kSPS、差动输入、微功耗 ADC

ADC161S626是TI公司的一款精密ADC(<=10MSPS)产品,ADC161S626是16 位、50 至 250 kSPS、差动输入、微功耗 ADC,本页介绍了ADC161S626的产品说明、应用、特性等,并给出了与ADC161S626相关的TI元器件型号供参考。

ADC161S626 - 16 位、50 至 250 kSPS、差动输入、微功耗 ADC - 精密ADC(<=10MSPS) - 模数转换器 - TI公司(Texas Instruments,德州仪器)

产品特性
  • 16-bit Resolution With No Missing Codes
  • Ensured Performance from 50 to 250 kSPS
  • ±0.003% Signal Span Accuracy
  • Separate Digital Input/Output Supply
  • True Differential Input
  • External Voltage Reference Range of 0.5 V to VA
  • Zero-Power Track Mode with 0-µsec Wake-up Delay
  • Wide Input Common-mode Voltage Range of 0 V to VA
  • SPI/QSPI™/MICROWIRE™ Compatible Serial Interface
  • Operating Temperature Range of −40°C to +85°C
  • Small VSSOP-10 Package
  • Key Specifications
    • Conversion Rate 50 to 250 kSPS
    • DNL +0.8 / −0.5 LSB
    • INL ±0.8 LSB
    • Offset Error Temp Drift 2.5 μV/°C
    • Gain Error Temp Drift 0.3 ppm/°C
    • SNR 93.2 dBc
    • THD − 104 dBc
    • Power Consumption
      • 10 kSPS, 5 V 0.24 mW
      • 200 kSPS, 5 V 5.3 mW
      • 250 kSPS, 5 V 5.8 mW
      • Power-Down, 5 V 10 μW
产品应用
  • Direct Sensor Interface
  • I/O Modules
  • Data Acquisition
  • Portable Systems
  • Motor Control
  • Medical Instruments
  • Instrumentation and Control Systems
产品说明

The ADC161S626 is a 16-bit successive-approximation register (SAR) Analog-to-Digital converter (ADC) with a maximum sampling rate of 250 kSPS. The ADC161S626 has a minimum signal span accuracy of ±0.003% over the temperate range of −40°C to +85°C. The converter features a differential analog input with an excellent common-mode signal rejection ratio of 85 dB, making the ADC161S626 suitable for noisy environments.

The ADC161S626 operates with a single analog supply (VA) and a separate digital input/output (VIO) supply. VA can range from 4.5 V to 5.5 V and VIO can range from 2.7 V to 5.5 V. This allows a system designer to maximize performance and minimize power consumption by operating the analog portion of the ADC at a VA of 5 V while interfacing with a 3.3-V controller. The serial data output is binary 2's complement and is SPI compatible.

The performance of the ADC161S626 is ensured over temperature at clock rates of 1 MHz to 5 MHz and reference voltages of 2.5 V to 5.5 V. The ADC161S626 is available in a small 10-lead VSSOP package. The high accuracy, differential input, low power consumption, and small size make the ADC161S626 ideal for direct connection to bridge sensors and transducers in battery operated systems or remote data acquisition applications.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
ADC161S626VSSOP (10)3.00 mm × 3.00 mm
