• 60 A Continuous Operating Current Capability

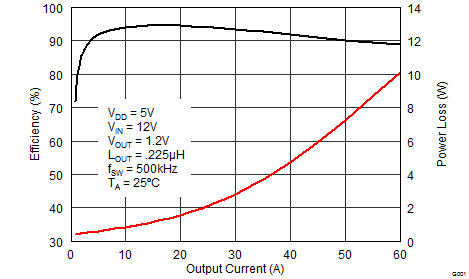

• 93.4% System Efficiency at 30 A
• Low Power Loss of 2.8 W at 30 A
• High Frequency Operation (up to 1.25 MHz)
• Diode Emulation Mode With FCCM
• Temperature Compensated Bi-Directional Current Sense
• Analog Temperature Output (600 mV at 0°C)
• Fault Monitoring
• High-Side Short, Overcurrent, and Overtemperature Protection
• 3.3 and 5 V PWM Signal Compatible
• Tri-State PWM Input
• Integrated Bootstrap Diode
• Optimized Deadtime for Shoot Through Protection
• High Density SON 5 × 6 mm Footprint
• Ultra-Low Inductance Package
• System Optimized PCB Footprint
• RoHS Compliant – Lead-Free Terminal Plating
• Halogen Free

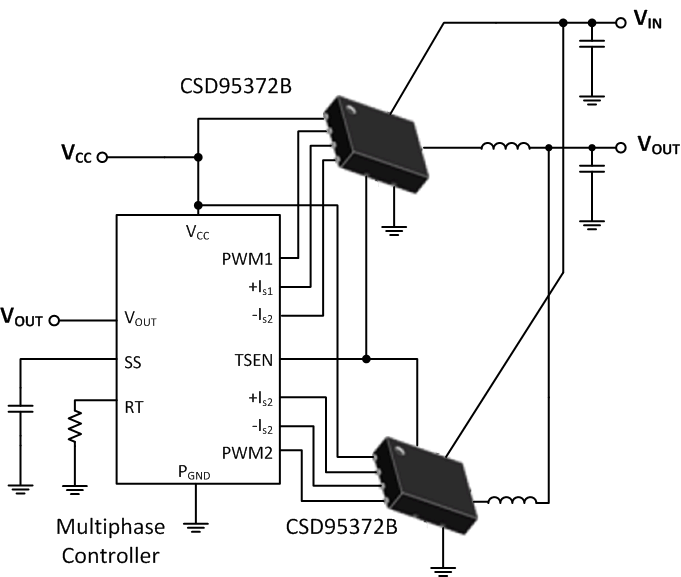

• Multiphase Synchronous Buck Converters
  • High Frequency Applications
  • High Current, Low Duty Cycle Applications
• POL DC-DC Converters
• Memory and Graphic Cards
• Desktop and Server VR11.x / VR12.x V-Core and Memory Synchronous Converters

The CSD95372BQ5M NexFET™ smart power stage is a highly optimized design for use in a high power, high density Synchronous Buck converter. This product integrates the Driver IC and Power MOSFETs to complete the power stage switching function. This combination produces high current, high efficiency, and high speed switching capability in a small 5 mm × 6 mm outline package. It also integrates the accurate current sensing and temperature sensing functionality to simplify system design and improve accuracy. In addition, the PCB footprint has been optimized to help reduce design time and simplify the completion of the overall system design.
