当前位置:TI公司 > > TI芯片 >> DCP010507DB
DCP010507DB技术文档下载:
DCP010507DB技术文档产品手册下载

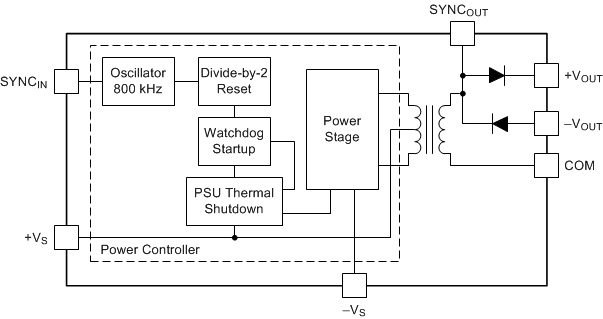

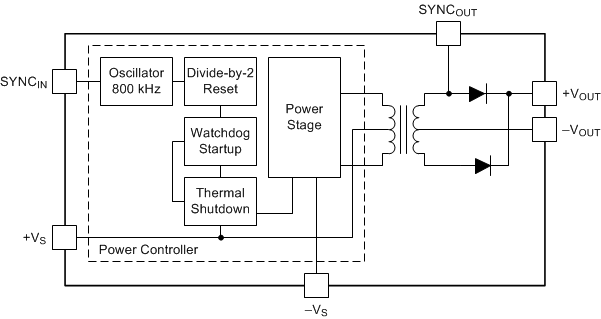

DCP010507DB - 产品图解:
DCP010507DB-微型、1W 隔离未稳压 DC/DC 转换器
DCP010507DB-隔离式模块-电源模块-电源管理
DCP010507DB-DCP01B Series 1-W, Isolated, Unregulated DC/DC Converter Modules
承诺原装正品
专营TI,真正优化您的供应链
TI产品 - DCP010507DB介绍
DCP010507DB - 微型、1W 隔离未稳压 DC/DC 转换器

DCP010507DB是TI公司的一款隔离式模块产品,DCP010507DB是微型、1W 隔离未稳压 DC/DC 转换器,本页介绍了DCP010507DB的产品说明、应用、特性等,并给出了与DCP010507DB相关的TI元器件型号供参考。

DCP010507DB - 微型、1W 隔离未稳压 DC/DC 转换器 - 隔离式模块 - 电源模块 - TI公司(Texas Instruments,德州仪器)

产品特性
  • 1-kV Isolation (Operational)
  • Device-to-Device Synchronization
  • EN55022 Class B EMC Performance
  • UL1950 Recognized Component
  • 7-Pin PDIP and 7-Pin SOP Packages
产品应用
  • Signal Path Isolation
  • Ground Loop Elimination
  • Data Acquisition
  • Industrial Control and Instrumentation
  • Test Equipment
产品说明

The DCP01B series is a family of 1-W, isolated, unregulated DC/DC converter modules. Requiring a minimum of external components and including on-chip device protection, the DCP01B series of devices provide extra features such as output disable and synchronization of switching frequencies.

This combination of features and small size makes the DCP01B series of devices suitable for a wide range of applications, and is an easy-to-use solution in applications requiring signal path isolation.

WARNING: This product has operational isolation and is intended for signal isolation only. It should not be used as a part of a safety isolation circuit requiring reinforced isolation. See definitions in the Feature Description section.

Device Information (1)
PART NUMBERPACKAGEBODY SIZE (NOM)
DCP01xxxxBPDIP (7)19.18 mm × 10.60 mm
SOP (7)
