• SC16C752B and XR16M752 Pin Compatible With Additional Enhancements
• Support 1.8-V, 2.5-V, 3.3-V, or 5-V Supply
• Characterized for Operation from –40°C to 85°C
• Supports up to:
  • 48-MHz Oscillator Input Clock (3 Mbps) for 5-V Operation
  • 32-MHz Oscillator Input Clock (2 Mbps) for 3.3-V Operation
  • 24-MHz Input Clock (1.5 Mbps) for 2.5-V Operation
  • 16-MHz Input Clock (1 Mbps) for 1.8-V Operation
• 64-Byte Transmit/Receive FIFO
• Software-Selectable Baud-Rate Generator
• Programmable and Selectable Transmit and Receive FIFO Trigger Levels for DMA, Interrupt Generation, and Software or Hardware Flow Control
• Software/Hardware Flow Control
  • Programmable Xon and Xoff Characters With Optional Xon Any Character
  • Programmable Auto-RTS and Auto-CTS-Modem Control Functions (CTS, RTS, DSR, DTR, RI, and CD)
• DMA Signaling Capability for Both Received and Transmitted Data on PN Package
• RS-485 Mode Support
• Infrared Data Association (IrDA) Capability
• Programmable Sleep Mode
• Programmable Serial Interface Characteristics
  • 5, 6, 7, or 8-Bit Characters With 1, 1.5, or 2 Stop Bit Generation
  • Even, Odd, or No Parity Bit Generation and Detection
• False Start Bit and Line Break Detection
• Internal Test and Loopback Capabilities
• Automotive Qualified

• GPS Systems
• Ethernet Network Routers
• Infrared Transceivers
• Domestic Applications
• Portable Applications
• Factory Automation and Process Control

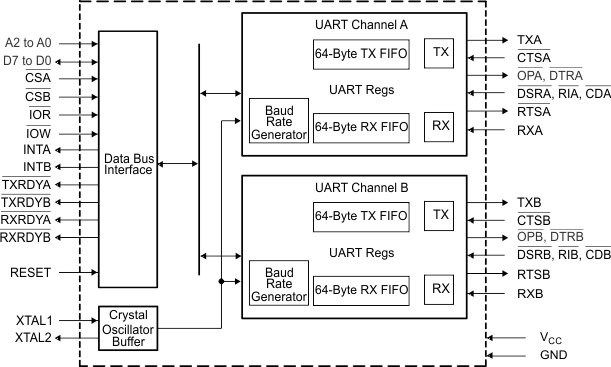

The TL16C752CI-Q1 is a dual universal asynchronous receiver transmitter (UART) with 64-byte FIFOs, automatic hardware and software flow control, and data rates up to 3 Mbps. The device offers enhanced features. It has a transmission Character control register (TCR) that stores received FIFO threshold level to start or stop transmission during hardware and software flow control.
