ADS1000-Q1是TI公司的一款精密ADC(<=10MSPS)产品，ADS1000-Q1是具有 I2C 接口的汽车类低成本 12 位 ADC，本页介绍了ADS1000-Q1的产品说明、应用、特性等，并给出了与ADS1000-Q1相关的TI元器件型号供参考。
ADS1000-Q1 - 具有 I2C 接口的汽车类低成本 12 位 ADC - 精密ADC(<=10MSPS) - 模数转换器 - TI公司（Texas Instruments，德州仪器）
- Qualified for Automotive Applications
- Complete 12-Bit Data Acquisition System in a Tiny SOT-23 Package
- Low Current Consumption: Only 90 μA
- Integral Nonlinearity: 1 LSB Max
- Single-Cycle Conversion
- Programmable Gain Amplifier Gain = 1, 2, 4, or 8
- 128-SPS Data Rate
- I2C Interface with Two Available Addresses
- Power Supply: 2.7 V to 5.5 V
- Automotive Head Units
- Automotive Battery Management Systems
- Automotive On-Board Chargers
- HEV/EV Inverters
- NOx Sensors
- Soot and Particulate Matter (PM) Sensors
- Oxygen (O2, Lambda, A/F) Sensors
- Ammonia (NH3) Sensors
- Other Emissions and Gas Sensors

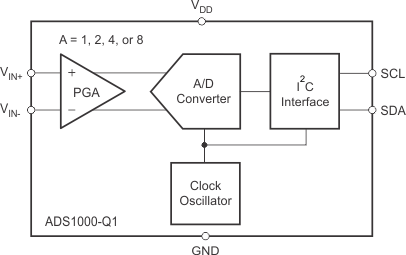

The ADS1000-Q1 is an I2C-compatible serial interface analog-to-digital (A/D) converter with differential inputs and 12 bits of resolution in a tiny SOT23-6 package. Conversions are performed ratiometrically, using the power supply as the reference voltage. The ADS1000-Q1 operates from a single power supply ranging from 2.7 V to 5.5 V.
The ADS1000-Q1 performs conversions at a rate of 128 samples per second (SPS). The onboard programmable gain amplifier (PGA), which offers gains of up to 8, allows smaller signals to be measured with high resolution. In single-conversion mode, the ADS1000-Q1 automatically powers down after a conversion, greatly reducing current consumption during idle periods.
The ADS1000-Q1 is designed for applications where space and power consumption are major considerations. Typical applications include head units, battery management systems, on-board chargers, and emissions and gas sensors.
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| ADS1000-Q1 | SOT-23 (6) | 1.60 mm × 2.90 mm |
