• Maximum Sample Rate: 100 MSPS
• Programmable Device Resolution
  • Quad-Channel, 16-Bit, High-SNR Mode
  • Quad-Channel, 14-Bit, Low-Power Mode
• 16-Bit High-SNR Mode
  • 1.4 W Total Power at 100 MSPS
    • 355 mW / Channel
  • 4 Vpp Full-scale Input
  • 85-dBFS SNR at fin = 3 MHz, 100 MSPS
• 14-Bit Low-Power Mode
  • 785 mW Total Power at 100 MSPS
    • 195 mW/Channel
  • 2-Vpp Full-Scale Input
  • 74-dBFS SNR at fin = 10 MHz
  • Integrated Clamp (for interfacing to CCD sensors)
• Low-Frequency Noise Suppression
• Digital Processing Block
  • Programmable FIR Decimation Filters
  • Programmable Digital Gain: 0 dB to 12 dB
  • 2- or 4-Channel Averaging
• Programmable Mapping Between ADC Input Channels and LVDS Output Pins—Eases Board Design
• Variety of Test Patterns to Verify Data Capture by FPGA/Receiver
• Serialized LVDS Outputs
• Internal and External References
• 3.3-V Analog Supply
• 1.8-V Digital Supply
• Recovers From 6-dB Overload Within 1 Clock Cycle
• Package:
  • 9-mm × 9-mm 64-Pin QFN
  • Non-Magnetic Package Option for MRI Systems
• CMOS Technology

• Medical Imaging – MRI
• Spectroscopy
• CCD Imaging

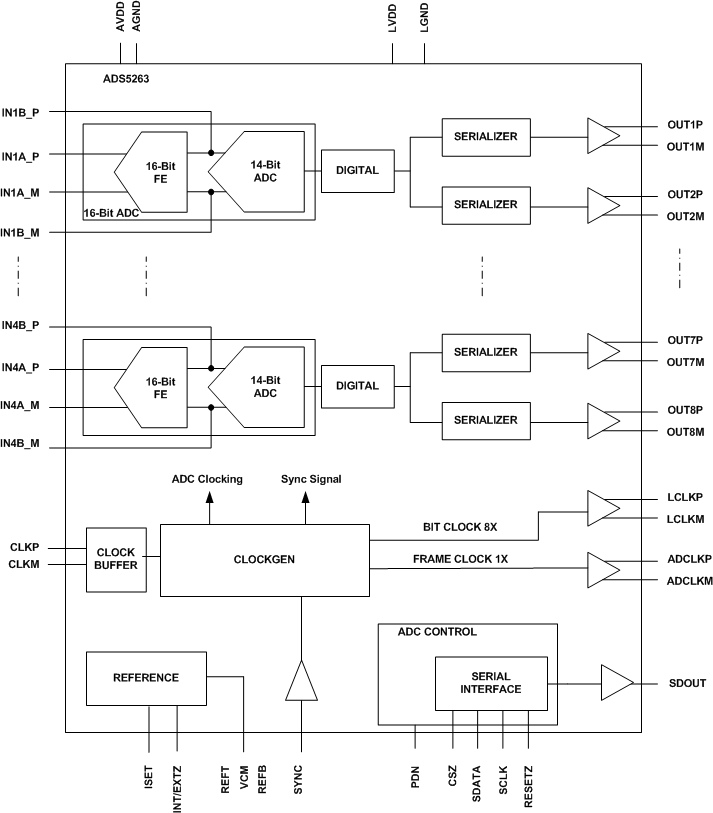

Using CMOS process technology and innovative circuit techniques, the ADS5263 is designed to operate at low power and give very high SNR performance with a 4-Vpp full-scale input. Using a low-noise 16-bit front-end stage followed by a 14-bit ADC, the device gives 85-dBFS SNR up to 10 MHz and better than 80-dBFS SNR up to 30 MHz.
