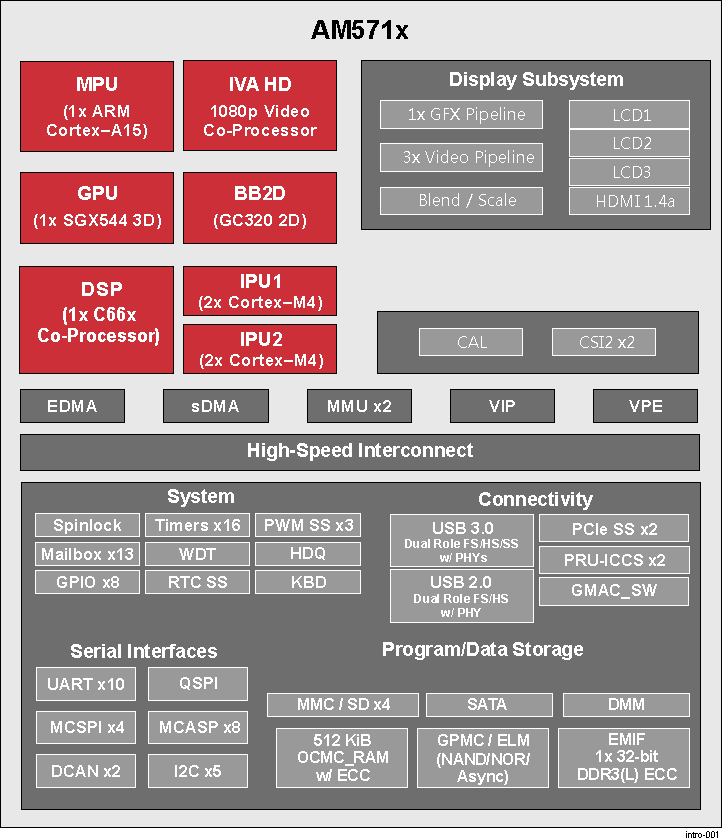

1 Device Overview

1.1 Features

ARM® Cortex®-A15 Microprocessor Subsystem
C66x™ Floating-Point VLIW DSP
- Fully Object-Code Compatible With C67x™ and C64x+™
- Up to Thirty-two 16 × 16-Bit Fixed-Point Multiplies per Cycle
Up to 512KB of On-Chip L3 RAM
Level 3 (L3) and Level 4 (L4) Interconnects
DDR3/DDR3L Memory Interface (EMIF) Module
- Supports up to DDR3-1333 (667MHz)
- Up to 4GB Across Two Chip Selects
Two ARM® Dual Cortex®-M4 Image Processing Units (IPUs)
Available IVA-HD Subsystem
Available Display Subsystem
- Full-HD Video (1920 × 1080p, 60 fps)
- Multiple Video Input and Video Output
- 2D and 3D Graphics
- Display Controller With DMA Engine and up to Three Pipelines
- HDMI Encoder: HDMI 1.4a and DVI 1.0 Compliant
2x Programmable Real-Time Unit Subsystem and Industrial Communication Subsystem (PRU-ICSS)
Accelerator (BB2D) Subsystem
- Vivante™ GC320 Core
Video Processing Engine (VPE)
Available Single-Core PowerVR® SGX544™ 3D GPU
One Video Input Port (VIP) Module
- Support for up to 4 Multiplexed Input Ports
General-Purpose Memory Controller (GPMC)
Enhanced Direct Memory Access (EDMA) Controller
Ethernet Subsystem
Sixteen 32-Bit General-Purpose Timers
32-Bit MPU Watchdog Timer
Five High-Speed Inter-Integrated Circuit (I2C) Ports
HDQ™/1-Wire® Interface
Ten Configurable UART/IrDA/CIR Modules
Four Multichannel Serial Peripheral Interfaces (MCSPIs)
Quad SPI Interface (QSPI)
SATA Gen2 Interface
Multichannel Audio Serial Port (MCASP)
SuperSpeed USB 3.0 Dual-Role Device
High Speed USB 2.0 Dual-Role Device
PCI-Express® 2.0 Subsystems With Two 5-Gbps Lanes
- One 2-lane Gen2-Compliant Port
- or Two 1-lane Gen2-Compliant Ports
Dual Controller Area Network (DCAN) Modules
- CAN 2.0B Protocol
Up to 215 General-Purpose I/O (GPIO) Pins
Power, Reset, and Clock Management
On-Chip Debug With CTools Technology
28-nm CMOS Technology
23 mm × 23 mm, 0.8-mm Pitch, 760-Pin BGA (ABC)

1.2 Applications

Industrial communication
Human Machine Interface (HMI)
Automation and Control
High performance applications
Other general use

1.3 Description

AM571x Sitara ARM applications processors are built to meet the intense processing needs of the modern embedded products.

AM571x devices bring high processing performance through the maximum flexibility of a fully integrated mixed processor solution. The devices also combine programmable video processing with a highly integrated peripheral set.

Programmability is provided by a single-core ARM Cortex-A15 RISC CPU with Neon™ extensions and a TI C66x VLIW floating-point DSP cores. The ARM allows developers to keep control functions separate from vision algorithms programmed on the DSP and coprocessors, thus reducing the complexity of the system software.

Additionally, TI provides a complete set of development tools for the ARM and C66x DSP, including C compilers, a DSP assembly optimizer to simplify programming and scheduling, and a debugging interface for visibility into source code execution.

Device Information

PART NUMBER	PACKAGE	BODY SIZE
AM571x	FCBGA (760)	23.0 mm × 23.0 mm
