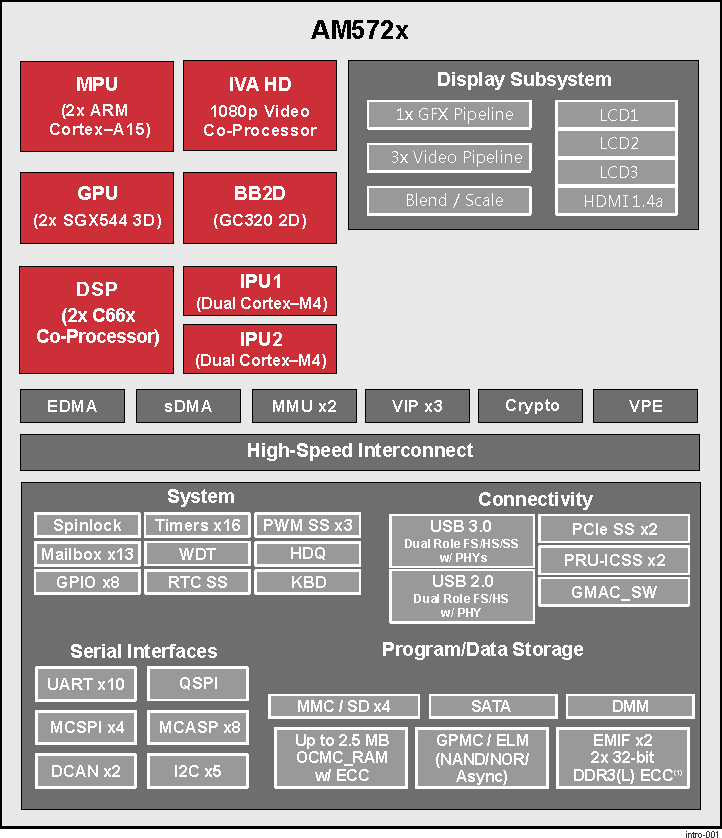

1 Device Overview

1.1 Features

ARM® Dual Cortex®-A15 Microprocessor Subsystem
Up to 2 C66x™ Floating-Point VLIW DSP
- Fully Object-Code Compatible With C67x™ and C64x+™
- Up to Thirty-two 16 × 16-Bit Fixed-Point Multiplies per Cycle
Up to 2.5MB of On-Chip L3 RAM
Two DDR3/DDR3L Memory Interface (EMIF) Modules
- Supports up to DDR3-1066
- Up to 2GB Supported per EMIF
Two ARM® Dual Cortex®-M4 Image Processing Units (IPUs)
IVA-HD Subsystem
Display Subsystem
- Full-HD Video (1920 × 1080p, 60 fps)
- Multiple Video Input and Video Output
- 2D and 3D Graphics
- Display Controller With DMA Engine and up to Three Pipelines
- HDMI Encoder: HDMI 1.4a and DVI 1.0 Compliant
2x Programmable Real-Time Unit Subsystem and Industrial Communication Subsystem (PRU-ICSS)
2D-Graphics Accelerator (BB2D) Subsystem
- Vivante™ GC320 Core
Video Processing Engine (VPE)
Dual-Core PowerVR® SGX544™ 3D GPU
Crypto Hardware Accelerators
- AES, SHA, RNG, DES and 3DES
Three Video Input Port (VIP) Modules
General-Purpose Memory Controller (GPMC)
Enhanced Direct Memory Access (EDMA) Controller
2-Port Gigabit Ethernet (GMAC)
Sixteen 32-Bit General-Purpose Timers
32-Bit MPU Watchdog Timer
Five Inter-Integrated Circuit (I2C) Ports
HDQ™/1-Wire® Interface
Ten Configurable UART/IrDA/CIR Modules
Four Multichannel Serial Peripheral Interfaces (MCSPIs)
Quad SPI Interface (QSPI)
SATA Gen2 Interface
Multichannel Audio Serial Port (MCASP)
SuperSpeed USB 3.0 Dual-Role Device
High-Speed USB 2.0 Dual-Role Device
PCI-Express® 2.0 Subsystems With Two 5-Gbps Lanes
- One 2-lane Gen2-Compliant Port
- or Two 1-lane Gen2-Compliant Ports
Dual Controller Area Network (DCAN) Modules
- CAN 2.0B Protocol
Up to 247 General-Purpose I/O (GPIO) Pins
Power, Reset, and Clock Management
On-Chip Debug With CTools Technology
28-nm CMOS Technology
23 mm × 23 mm, 0.8-mm Pitch, 760-Pin BGA (ABC)

1.2 Applications

Industrial Communication
Human Machine Interface (HMI)
Automation and Control
High Performance Applications
Other General Use

1.3 Description

AM572x Sitara ARM applications processors are built to meet the intense processing needs of the modern embedded products.

AM572x devices bring high processing performance through the maximum flexibility of a fully integrated mixed processor solution. The devices also combine programmable video processing with a highly integrated peripheral set. Cryptographic acceleration is available in every AM572x device.

Programmability is provided by dual-core ARM Cortex-A15 RISC CPUs with Neon™ extension, and two TI C66x VLIW floating-point DSP cores. The ARM allows developers to keep control functions separate from other algorithms programmed on the DSPs and coprocessors, thus reducing the complexity of the system software.

Additionally, TI provides a complete set of development tools for the ARM and C66x DSP, including C compilers, a DSP assembly optimizer to simplify programming and scheduling, and a debugging interface for visibility into source code execution.

Device Information

PART NUMBER	PACKAGE	BODY SIZE
AM5728	FCBGA (760)	23.0 mm × 23.0 mm
AM5726	FCBGA (760)	23.0 mm × 23.0 mm
