BQ24050 - 具有自动 AC/USB 检测功能的 800mA 单输入单节锂离子电池充电器。| 线性

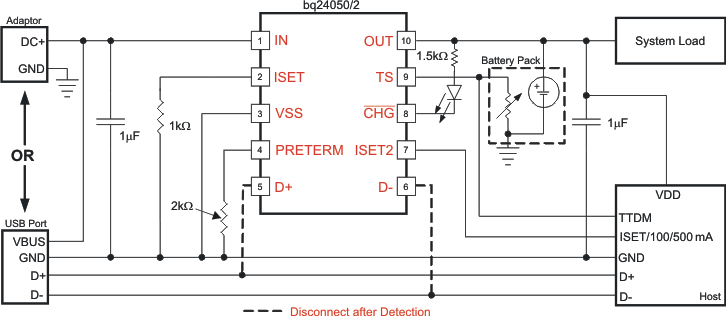

BQ24050是TI德州仪器公司的一款电池充电器IC产品，BQ24050是具有自动 AC/USB 检测功能的 800mA 单输入单节锂离子电池充电器。| 线性，本站介绍了BQ24050的封装应用图解、特点和优点、功能等，并给出了与BQ24050相关的TI元器件型号供参考。

BQ24050 - 具有自动 AC/USB 检测功能的 800mA 单输入单节锂离子电池充电器。| 线性 - 电池充电器IC - 电池管理产品 - 德州仪器

产品特性

Charging
- 1% Charge Voltage Accuracy
- 10% Charge Current Accuracy
- Pin Selectable USB 100-mA and 500-mA Maximum Input Current Limit
- Programmable Termination and Precharge Threshold
Protection
- 30-V Input Rating; With 6.6-V Input Overvoltage Protection
- Input Voltage Dynamic Power Management
- 125 °C Thermal Regulation; 150°C Thermal Shutdown Protection
- OUT Short-Circuit Protection and ISET Short Detection
- Operation Over JEITA Range Through Battery NTC - ½ Fast-Charge-Current at Cold, 4.06 V at Hot
- Fixed 10-Hour Safety Timer
System
- Auto Input Source Detection (D+, D– Pins)
  - No Device Transceiver Required
  - USB Friendly
- Automatic Termination and Timer Disable Mode (TTDM) for Absent Battery Pack With Thermistor
- Status Indication – Charging/Done
- Available in Small 2-mm × 2-mm or 2-mm × 3-mm Package

产品应用

Smart Phones
PDAs
MP3 Players
Low-Power Handheld Devices

产品说明

The bq2405x series of devices are highly integrated Li-Ion and Li-Pol linear chargers devices targeted at space-limited portable applications. The devices operate from either a USB port or AC adapter. The high-input voltage range with input overvoltage protection supports low-cost unregulated adapters.

The bq2405x has a single power output that charges the battery. A system load can be placed in parallel with the battery as long as the average system load does not keep the battery from charging fully during the 10-hour safety timer.

The battery is charged in three phases: conditioning, constant current, and constant voltage. In all charge phases, an internal control loop monitors the IC junction temperature and reduces the charge current if an internal temperature threshold is exceeded.

The charger power stage and charge current sense functions are fully integrated. The charger function has high accuracy current and voltage regulation loops, charge status display, and charge termination. The precharge current and termination current threshold are programmed through an external resistor. The fast charge current value is also programmable through an external resistor.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
bq24050	WSON (10)	2.00 mm × 2.00 mm
bq24052	WSON (10)	2.00 mm × 2.00 mm
bq24055	WSON (12)	2.00 mm × 3.00 mm
