CD4051B-MIL - 具有逻辑电平转换功能的 CMOS 单路 8 通道模拟多路复用器/多路解复用器

CD4051B-MIL是TI德州仪器公司的一款模拟多路复用器/多路解复用器产品，CD4051B-MIL是具有逻辑电平转换功能的 CMOS 单路 8 通道模拟多路复用器/多路解复用器，本站介绍了CD4051B-MIL的封装应用图解、特点和优点、功能等，并给出了与CD4051B-MIL相关的TI元器件型号供参考。

CD4051B-MIL - 具有逻辑电平转换功能的 CMOS 单路 8 通道模拟多路复用器/多路解复用器 - 模拟多路复用器/多路解复用器 - 多路复用器/多路解复用器(Mux/Demux) - 德州仪器

产品特性

Wide Range of Digital and Analog Signal Levels
- Digital: 3 V to 20 V
- Analog: ≤20 VP-P
Low ON Resistance,125 Ω (Typical) Over 15 VP-P Signal Input Range for VDD – VEE = 18 V
High OFF Resistance, Channel Leakage of ±100 pA (Typical) at VDD – VEE = 18 V
Logic-Level Conversion for Digital Addressing Signals of 3 V to 20 V (VDD – VSS = 3 V to 20 V) to Switch Analog Signals to 20 VP-P (VDD – VEE = 20 V) Matched Switch Characteristics, rON = 5 Ω (Typical) for VDD – VEE = 15 V Very Low Quiescent Power Dissipation Under All Digital-Control Input and Supply Conditions, 0.2 µW (Typical) at VDD – VSS = VDD – VEE = 10 V
Binary Address Decoding on Chip
5 V, 10 V, and 15 V Parametric Ratings
100% Tested for Quiescent Current at 20 V
Maximum Input Current of 1 µA at 18 V Over Full Package Temperature Range, 100 nA at 18 V and 25°C
Break-Before-Make Switching Eliminates Channel Overlap

产品应用

Analog and Digital Multiplexing and Demultiplexing
A/D and D/A Conversion
Signal Gating
Factory Automation
Televisions
Appliances
Consumer Audio
Programmable Logic Circuits
Sensors

产品说明

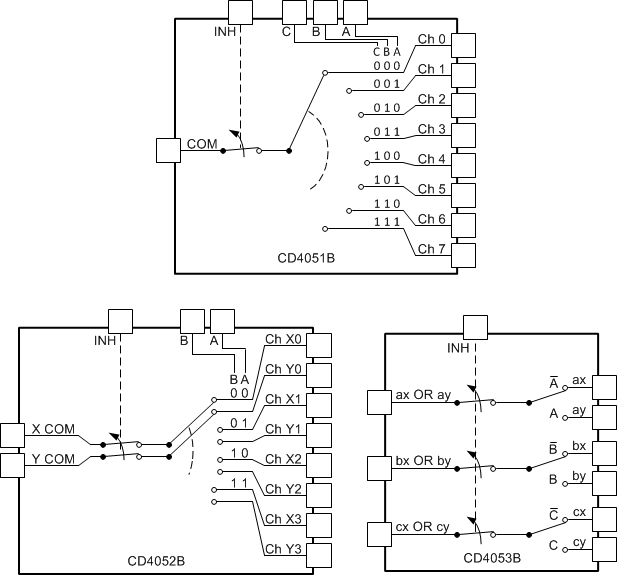

The CD405xB analog multiplexers and demuliplexers are digitally-controlled analog switches having low ON impedance and very low OFF leakage current. These multiplexer circuits dissipate extremely low quiescent power over the full VDD – VSS and VDD – VEE supply-voltage ranges, independent of the logic state of the control signals.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
CD405xB	CDIP (16)	19.50 mm × 6.92 mm
	PDIP (16)	19.30 mm × 6.35 mm
	SOIC (16)	9.90 mm × 3.91 mm
	SOP (16)	10.30 mm × 5.30 mm
	TSSOP (16)	5.00 mm × 4.40 mm
