CDCLVC1102是TI公司的一款单端产品，CDCLVC1102是低抖动 1:2 LVCMOS 扇出时钟缓冲器，本页介绍了CDCLVC1102的产品说明、应用、特性等，并给出了与CDCLVC1102相关的TI元器件型号供参考。
CDCLVC1102 - 低抖动 1:2 LVCMOS 扇出时钟缓冲器 - 单端 - 时钟缓冲器 - TI公司（Texas Instruments，德州仪器）
- High-Performance 1:2, 1:3, 1:4, 1:6, 1:8, 1:10, 1:12 LVCMOS Clock Buffer Family
- Very Low Pin-to-Pin Skew < 50 ps
- Very Low Additive Jitter < 100 fs
- Supply Voltage: 3.3 V or 2.5 V
- fmax = 250 MHz for 3.3 V fmax = 180 MHz for 2.5 V
- Operating Temperature Range: –40°C to 85°C
- Available in 8-, 14-, 16-, 20-, 24-Pin TSSOP Package (All Pin Compatible)
- General-Purpose Communication, Industrial, and Consumer Applications

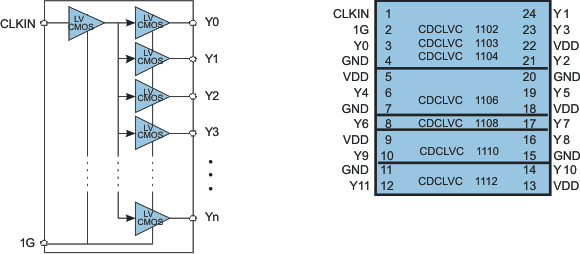

The CDCLVC11xx is a modular, high-performance, low-skew, general-purpose clock buffer family from Texas Instruments.
The entire family is designed with a modular approach in mind. It is intended to round up TI's series of LVCMOS clock generators.
Seven different fan-out variations, 1:2 to 1:12, are available. All of the devices are pin compatible to each other for easy handling.
All family members share the same high performing characteristics such as low additive jitter, low skew, and wide operating temperature range.
The CDCLVC11xx supports an asynchronous output enable control (1G) which switches the outputs into a low state when 1G is low.
The CDCLVC11xx family operates in a 2.5-V and 3.3-V environment and are characterized for operation from –40°C to 85°C.
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| CDCLVC1102 | TTSOP (8) | 3.00 mm × 4.40 mm |
| CDCLVC1103 | ||
| CDCLVC1104 | ||
| CDCLVC1106 | TTSOP (14) | 5.00 mm × 4.40 mm |
| CDCLVC1108 | TTSOP (16) | |
| CDCLVC1110 | TTSOP (20) | 6.50 mm × 4.40 mm |
| CDCLVC1112 | TTSOP (24) | 7.80 mm × 4.40 mm |
