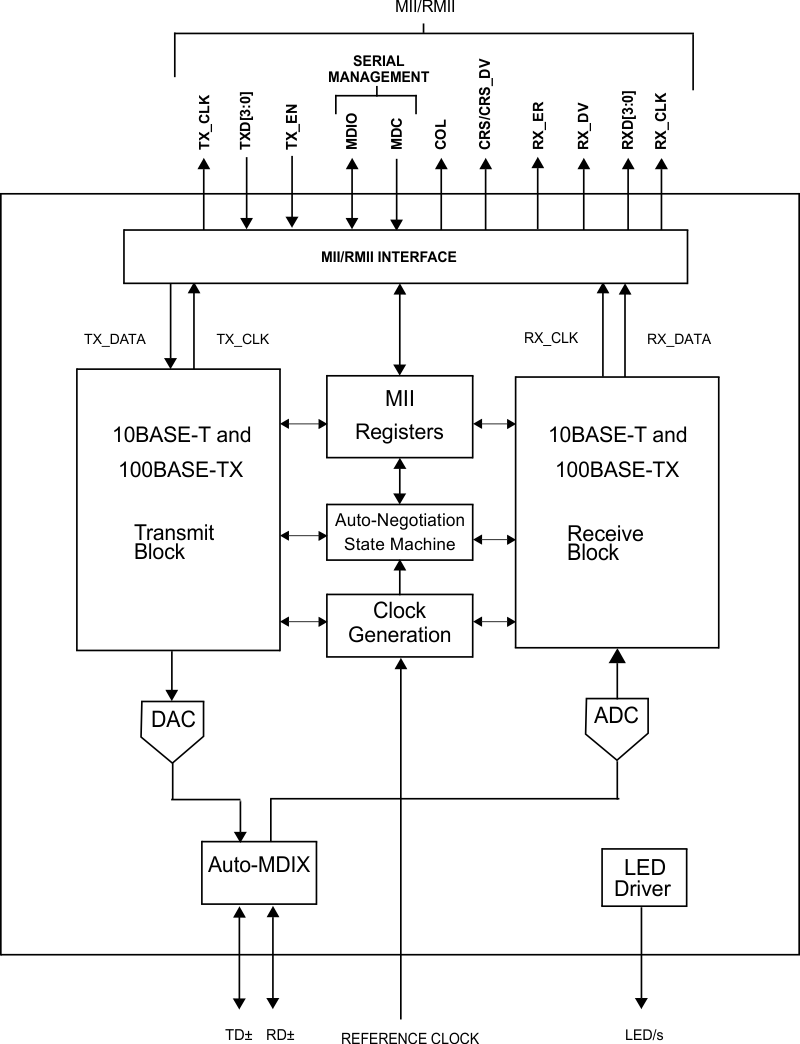

DP83848J - 产品图解:
DP83848J-PHYTER 迷你 LS 商用温度单端口 10/100 Mb/s 以太网收发器
DP83848J-TI芯片-以太网-接口
承诺原装正品
专营TI,真正优化您的供应链
TI产品 - DP83848J介绍
DP83848J - PHYTER 迷你 LS 商用温度单端口 10/100 Mb/s 以太网收发器

DP83848J是TI公司的一款TI芯片产品,DP83848J是PHYTER 迷你 LS 商用温度单端口 10/100 Mb/s 以太网收发器,本页介绍了DP83848J的产品说明、应用、特性等,并给出了与DP83848J相关的TI元器件型号供参考。

DP83848J - PHYTER 迷你 LS 商用温度单端口 10/100 Mb/s 以太网收发器 - TI芯片 - 以太网 - TI公司(Texas Instruments,德州仪器)

1 Device Overview
1.1 Features
  • Low-Power 3.3-V, 0.18-µm CMOS Technology
  • Auto-MDIX for 10/100 Mb/s
  • Energy Detection Mode
  • 3.3-V MAC Interface
  • RMII Rev. 1.2 Interface (configurable)
  • MII Interface
  • MII Serial Management Interface (MDC and MDIO)
  • IEEE 802.3 Auto-Negotiation and Parallel Detection
  • IEEE 802.3 ENDEC, 10BASE-T Transceivers and Filters
  • IEEE 802.3 PCS, 100BASE-TX Transceivers and Filters
  • Integrated ANSI X3.263 Compliant TP-PMD Physical Sub-Layer with Adaptive Equalization and Baseline Wander Compensation
  • Error-Free Operation Beyond 137 Meters
  • ESD Protection – Greater than 4 kV Human Body Model
  • Configurable LED for Link and Activity (DP83848J/K)
  • 25-MHz Clock Output (DP83848H/M/T)
  • Single Register Access for Complete PHY Status
  • 10/100 Mb/s Packet BIST (Built-in Self Test)
1.2 Applications
  • Peripheral Devices
  • Mobile Devices
  • Factory and Building Automation
  • Base Stations
1.3 Description

The DP83848x device addresses the quality, reliability and small form factor required for space sensitive applications in embedded systems.

The DP83848x offers performance far exceeding the IEEE specifications, with superior interoperability and industry leading performance beyond 137 meters of Cat-V cable. The DP83848x also offers Auto-MDIX to remove cabling complications. DP83848x has superior ESD protection, greater than 4 kV Human Body Model, providing extremely high reliability and robust operation, ensuring a high-level performance in all applications.

DP83848J/K offers two flexible LED indicators one for Link and the other for Speed. In addition, both MII and RMII are supported ensuring ease and flexibility of design.

The DP83848H/M/T incorporates a 25-MHz clock out that eliminates the need and hence the space and cost, of an additional clock source component.

The DP83848x is offered in small 6-mm × 6-mm WQFN 40-pin package and is ideal for industrial controls, building/factory automation, transportation, test equipment and wire-less base stations.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
DP83848xWQFN (40)6.00 mm × 6.00 mm
