DRV2605L-Q1 - 用于具有内置库和智能环路架构的 ERM 和 LRA 的 DRV2605L-Q1 触觉驱动器
DRV2605L-Q1是TI德州仪器公司的一款电机触觉驱动器产品,DRV2605L-Q1是用于具有内置库和智能环路架构的 ERM 和 LRA 的 DRV2605L-Q1 触觉驱动器,本站介绍了DRV2605L-Q1的封装应用图解、特点和优点、功能等,并给出了与DRV2605L-Q1相关的TI元器件型号供参考。
DRV2605L-Q1 - 用于具有内置库和智能环路架构的 ERM 和 LRA 的 DRV2605L-Q1 触觉驱动器 - 电机触觉驱动器 - 触觉驱动器 - 德州仪器
- Qualified for Automotive Applications
- AEC-Q100 Qualified with the Following Results:
- Device Temperature Grade 2: –40°C to 105°C
- Device HBM ESD Classification Level 1B
- Device CDM ESD Classification Level C6
- Flexible Haptic and Vibration Driver
- LRA (Linear Resonance Actuator)
- ERM (Eccentric Rotating Mass)
- I2C-Controlled Digital Playback Engine
- Waveform Sequencer and Trigger
- Real-Time Playback Mode through I2C
- I2C Dual-Mode Drive (Open and Closed Loop)
- Smart-Loop Architecture (Patent Pending Control Algorithm)
- Automatic Overdrive and Braking
- Automatic Resonance Tracking and Reporting (LRA Only)
- Automatic Actuator Diagnostic
- Automatic Level Calibration
- Wide Support for Actuator Models
- Licensed Immersion TouchSense® 2200 Features:
- Integrated Immersion Effect Library
- Audio-to-Vibe
- Drive Compensation Over Battery Discharge
- Wide Voltage Operation (2 V to 5.2 V)
- Efficient Differential Switching Output Drive
- PWM Input with 0% to 100% Duty-Cycle Control Range
- Hardware Trigger Input
- Fast Startup Time
- 1.8-V Compatible, VDD-Tolerant Digital Interface
- Touch-Enabled Infotainment
- Mechanical Button Replacement
- Automotive Body Controls
- Driver Alerts

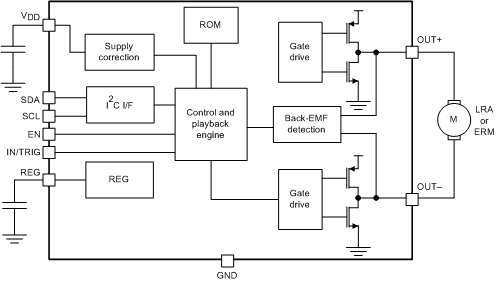

The DRV2605L-Q1 device is an automotive haptic driver that includes a haptic-effect library and provides a closed-loop actuator-control system for high-quality tactile feedback for ERM and LRA. This schema helps improve actuator performance in terms of acceleration consistency, start time, and brake time and is accessible through a shared I2C compatible bus or PWM input signal.
The DRV2605L-Q1 device offers a licensed version of TouchSense 2200 software from Immersion which eliminates the requirement to design haptic waveforms because the software includes over 100 licensed effects (6 ERM libraries and 1 LRA library) and audio-to-vibe features.
Additionally, the real-time playback mode allows the host processor to bypass the library playback engine and play waveforms directly from the host through I2C.
The smart-loop architecture inside the DRV2605L-Q1 device allows simple auto-resonant drive for the LRA as well as feedback-optimized ERM drive allowing for automatic overdrive and braking. The smart-loop architecture creates a simplified input waveform interface as well as reliable motor control and consistent motor performance. The DRV2605L-Q1 also allows for open-loop driving through the use of internally-generated PWM. Additionally, the audio-to-vibe mode automatically converts an audio input signal to meaningful tactile effects.
For an important notice regarding Immersion software, see the Legal Notice section.
| PART NUMBER | PACKAGE | BODY SIZE (MAX) |
|---|---|---|
| DRV2605L-Q1 | VSSOP (10) | 3.00 mm × 3.00 mm |
