DRV3205-Q1 - 用于汽车安全应用的具有 3 个电流感应放大器的三相电机前置驱动器 IC

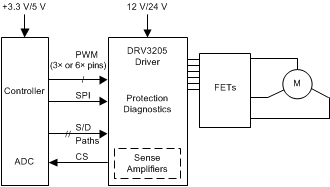

DRV3205-Q1是TI德州仪器公司的一款面向安全应用的无刷直流栅极驱动器产品，DRV3205-Q1是用于汽车安全应用的具有 3 个电流感应放大器的三相电机前置驱动器 IC，本站介绍了DRV3205-Q1的封装应用图解、特点和优点、功能等，并给出了与DRV3205-Q1相关的TI元器件型号供参考。

DRV3205-Q1 - 用于汽车安全应用的具有 3 个电流感应放大器的三相电机前置驱动器 IC - 面向安全应用的无刷直流栅极驱动器 - 无刷直流(BLDC)驱动器 - 德州仪器

产品特性

Qualified for Automotive Applications
Ambient Operating Temperature Range
- AEC-Q100 Grade 1 –40°C to 125°C
Three-Phase Bridge Driver for Motor Control
Suitable for 12-V and 24-V Applications
Three Integrated High Accuracy Current Sense Amplifiers
Integrated Boost Converter, Gate Drive to 4.75 V
Drives 6 Separate N-Channel Power MOSFETs
Strong Gate Drive for High Current FETs
Programmable Dead Time
PWM Frequency up to 20 kHz
Supports 100% Duty Cycle Operation
Short-Circuit Protection
- VDS-Monitoring (Adjustable Detection Level)
- Shunt Current Limit (Adjustable Detection Level)
Overvoltage and Undervoltage Protection
Overtemperature Warning and Shut Down
Sophisticated Failure Detection and Handling Through SPI
System Supervision
Internal Driver Diagnostics
Sleep Mode Function
Thermally-Enhanced 48-Pin HTQFP (7- × 7-mm Body)

产品应用

Automotive Motor-Control Applications
- Electrical Power Steering (EPS, EHPS)
- Electrical Brake and Brake Assist
- Transmission
- Pumps
Industrial Motor-Control Applications

产品说明

The bridge driver is dedicated to automotive 3-phase brushless DC motor control applications including safety motor control applications. The device provides 6 dedicated drivers for standard-level N-channel MOSFET transistors. The strong driver strength is suitable for high current applications and programmable to limit peak output current. The device incorporates sophisticated diagnosis, protection, and monitoring features through an SPI. A boost converter with an integrated FET provides the overdrive voltage, allowing full control on the power stages even for low battery voltage down to 4.75 V

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
DRV3205-Q1	HTQFP (48)	7.00 mm × 7.00 mm
