DS90UB940-Q1 - 1080p 双路 FPD-Link III 解串器

DS90UB940-Q1是TI德州仪器公司的一款FPD-LinkIII串行器/解串器产品，DS90UB940-Q1是1080p 双路 FPD-Link III 解串器，本站介绍了DS90UB940-Q1的封装应用图解、特点和优点、功能等，并给出了与DS90UB940-Q1相关的TI元器件型号供参考。

DS90UB940-Q1 - 1080p 双路 FPD-Link III 解串器 - FPD-LinkIII串行器/解串器 - 显示和成像串行器/解串器 - 德州仪器

产品特性

Supports Pixel Clock Frequency up to 170 MHz for WUXGA (1920x1200) and 1080p60 Resolutions with 24-bit Color Depth
1-lane or 2-lane FPD-Link III Interface with De-skew Capability
MIPI D-PHY / CSI-2 Transmitter
- CSI-2 Output Ports with selectable 2- or 4-lane operation
- Supports up to 4 Data Lanes per CSI-2 port, Each Lane up to 1.3 Gbps
- Video formats: RGB888/666/565, YUV422/420, RAW8/10/12
- Programmable Virtual Channel Identifier
High Speed GPIO up to 2.0 Mbps
Supports up to 15 meters of cable with automatic temperature and aging compensation
SPI Control Interfaces up to 3.3 Mbps
I2C (Master/Slave) with 1 Mbps Fast-mode Plus
Adaptive Receive Equalization
Supports 7.1 Multiple I2S (4 data) Channels
Backward Compatible to DS90UB925/925AQ-Q1 and DS90UB927Q-Q1 FPD-Link III Serializers
Automotive Grade Product: AEC-Q100 Grade 2 Qualified

产品应用

Automotive Infotainment:
- Central Information Displays
- Rear Seat Entertainment Systems
- Digital Instrument Clusters
ADAS Camera Systems

产品说明

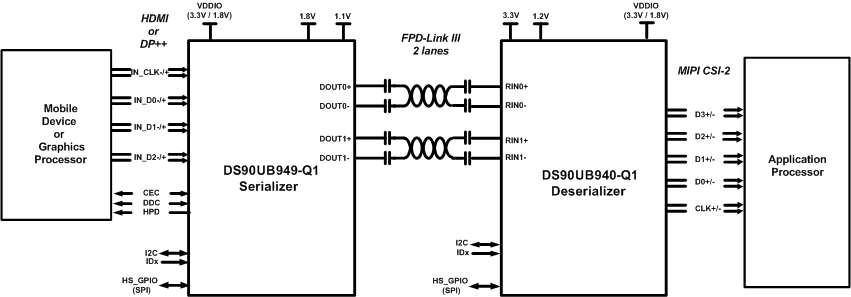

The DS90UB940-Q1 is a FPD-Link III Deserializer which, in conjunction with the DS90UB949/947/929-Q1 Serializers, converts 1-lane or 2-lane FPD-Link III streams into a MIPI CSI-2 interface. The Deserializer is capable of operating over cost-effective 50Ω single-ended coaxial or 100Ω differential shielded twisted-pair (STP) cables. It recovers the data from one or two FPD-Link III serial streams and translates it into a Camera Serial Interface (CSI-2) format supporting video resolutions up to WUXGA and 1080p60 with 24-bit color depth.

The FPD-Link III interface supports video and audio data transmission and full duplex control, including I2C and SPI communication, over the same differential link. Consolidation of video data and control over two differential pairs reduces the interconnect size and weight and simplifies system design. EMI is minimized by the use of low voltage differential signaling, data scrambling, and randomization. In backward compatible mode, the device supports up to WXGA and 720p resolutions with 24-bit color depth over a single differential link.

The device automatically detects the FPD-Link III channels and provides a clock alignment and de-skew functionality without the need for any special training patterns. This ensures skew phase tolerance from mismatches in interconnect wires such as PCB trace routing, cable pair-to-pair length differences, and connector imbalances.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
DS90UB940-Q1	WQFN NKD (64)	9.00 mm x 9.00 mm
