HD3SS6126 - USB 3.0 差动开关 2:1/1:2 MUX/DEMUX

HD3SS6126是TI德州仪器公司的一款USB/MHL开关产品，HD3SS6126是USB 3.0 差动开关 2:1/1:2 MUX/DEMUX，本站介绍了HD3SS6126的封装应用图解、特点和优点、功能等，并给出了与HD3SS6126相关的TI元器件型号供参考。

HD3SS6126 - USB 3.0 差动开关 2:1/1:2 MUX/DEMUX - USB/MHL开关 - USB - 德州仪器

产品特性

Ideal for USB Applications
- Signal Switch for USB 3.0 (SuperSpeed USB and USB 2.0 HS/FS/LS)
Three Bidirectional Differential Pair Channel MUX/DEMUX Switches Also Suitable for DisplayPort, PCIe Gen1/2/3, SATA 1.5/3/6G, SAS 1.5/3/6G and XAUI Applications
Supports Data Rates up to 10 Gbps on High-Bandwidth Path (SS)
VCC Operating Range 3.3 V ± 10%
Wide –3-dB Differential BW of More Than 10 GHz on High-Bandwidth Path (SS)
Uses a Unique Adaptation Method to Maintain a Constant Channel Impedance Over the Supported Common-Mode Voltage Range
Excellent High-bandwidth Path Dynamic Characteristics (at 2.5 GHz)
- Crosstalk = –35 dB
- Isolation = –23 dB
- Insertion Loss = –1.1 dB
- Return Loss = –11 dB
Small 3.5 mm × 9 mm, 42-Pin WQFN Package (RUA)
Active Mode Power = 8 mW

产品应用

Desktop PCs
Notebook PCs
Tablets
Docking Stations
Telecommunications
Televisions

产品说明

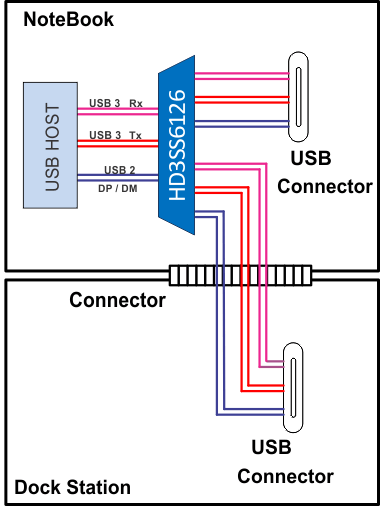

The HD3SS6126 device is a high-speed, passive switch that is designed for USB applications to route both SuperSpeed USB RX and TX and USB 2.0 DP and DM signals from a source to two destinations or vice versa. The device can also be used for DisplayPort, PCI-Express™, SATA, SAS, and XAUI applications. The HD3SS6126 device can be used in either sink-side or source-side applications.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
HD3SS6126	WQFN (42)	9.00 mm × 3.50 mm
