INA195A-Q1是TI公司的一款电流分流模拟输出产品，INA195A-Q1是汽车级、-16V 至 +80V、低侧/高侧、高速、电压输出电流分流监控器，本页介绍了INA195A-Q1的产品说明、应用、特性等，并给出了与INA195A-Q1相关的TI元器件型号供参考。
INA195A-Q1 - 汽车级、-16V 至 +80V、低侧/高侧、高速、电压输出电流分流监控器 - 电流分流模拟输出 - 电流感应放大器 - TI公司（Texas Instruments，德州仪器）
- Qualified for Automotive Applications
- Wide Common-Mode Voltage: –16 V to 80 V
- Low Error: 3% Overtemperature (Maximum)
- Bandwidth: Up to 500kHz
- Three Transfer Functions Available: 20V/V,50V/V,and100V/V
- Complete Current-Sense Solution
- Welding Equipment
- Body Control Modules
- Load Health Monitoring
- Telecom Equipment
- HEV/EV Powertrain
- Power Management
- Battery Chargers

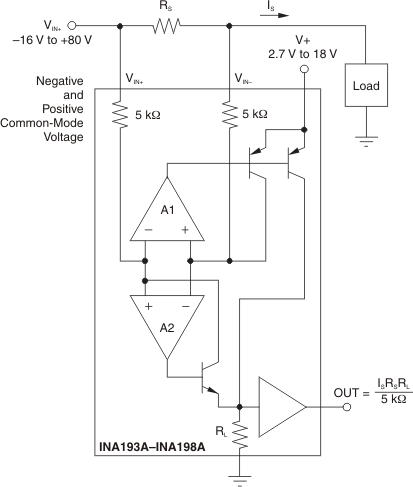

The INA19xA-Q1 family of current shunt monitors with voltage output can sense drops across shunts at common-mode voltages from –16V to 80V, independent of the INA19xA supply voltage. They are available with three output voltage scales: 20V/V, 50V/V, and 100V/V. The 500-kHz bandwidth simplifies use in current control loops and monitoring DC motor health. The INA193A–INA195A provide identical functions but alternative pin configurations to the INA196A–INA198A, respectively.
The INA19xA-Q1 operate from a single 2.7-V to 18-V supply. They are specified over the extended operating temperature range (–40°C to 125°C), and are offered in a space-saving SOT-23 package.
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| INA19xA-Q1 | SOT-23 (5) | 2.90 mm × 1.60 mm |
