ISO7521C - 低功耗 5KVrms 双通道数字隔离器

ISO7521C是TI德州仪器公司的一款无产品，ISO7521C是低功耗 5KVrms 双通道数字隔离器，本站介绍了ISO7521C的封装应用图解、特点和优点、功能等，并给出了与ISO7521C相关的TI元器件型号供参考。

ISO7521C - 低功耗 5KVrms 双通道数字隔离器 - 无 - 数字隔离器 - 德州仪器

产品特性

Highest Signaling Rate: 1 Mbps
Propagation Delay Less Than 20 ns
Low-Power Consumption
Wide Ambient Temperature: –40°C to 105°C
50 kV/µs Transient Immunity Typical
Operates From 3.3-V or 5-V Supply and Logic Levels
3.3-V and 5.0-V Level Translation
Safety and Regulatory Approvals
- 6000 VPK Isolation per DIN V VDE V 0884-10 and DIN EN 61010-1
- 4243 VRMS Isolation for 1 Minute per UL 1577
- CSA Component Acceptance Notice 5A, IEC 60950-1, IEC 61010-1, and IEC 60601-1 End Equipment Standards
- TUV 5000 VRMS Isolation per EN 60950-1 and EN 61010-1
- CQC Certification per GB4943.1-2011

产品应用

Opto-Coupler Replacement in:
- Industrial Field-Buses
  - ProfiBuses
  - ModBuses
  - DeviceNet™ Data Buses
- Servo Control Interfaces
- Motor Control
- Power Supplies
- Battery Packs

产品说明

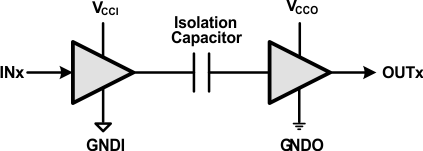

The ISO7520C and ISO7521C provide galvanic isolation of up to 4243 VRMS for 1 minute per UL and 6000 VPK per VDE. These devices are also certified to 5000 VRMS reinforced insulation per end equipment standards IEC 60950-1, IEC 61010-1, and IEC 60601-1. These digital isolators have two isolated channels with unidirectional (ISO7520C) and bidirectional (ISO7521C) channel configurations. Each isolation channel has a logic input and output buffer separated by a silicon oxide (SiO2) insulation barrier. Used in conjunction with isolated power supplies, these devices prevent noise currents on a data bus or other circuits from entering the local ground and interfering with or damaging sensitive circuitry. The devices have TTL input thresholds and can operate from 3.3- and 5-V supplies. All inputs are 5-V tolerant when supplied from 3.3-V supplies.

NOTE: The ISO7520C and ISO7521C are specified for signaling rates up to 1 Mbps. Due to their fast response time, these devices will also transmit faster data with much shorter pulse widths. Designers must add external filtering to remove spurious signals with input pulse duration < 20 ns, if desired.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
ISO7520C	SOIC (16)	10.30 mm × 7.50 mm
ISO7521C	SOIC (16)	10.30 mm × 7.50 mm
