LDC1051 - 带 SPI 接口的电感数字转换器

LDC1051是TI德州仪器公司的一款电感数字转换器产品，LDC1051是带 SPI 接口的电感数字转换器，本站介绍了LDC1051的封装应用图解、特点和优点、功能等，并给出了与LDC1051相关的TI元器件型号供参考。

LDC1051 - 带 SPI 接口的电感数字转换器 - 电感数字转换器 - 电感式传感 - 德州仪器

产品特性

Remote Sensor Placement (Decoupling The LDC From Harsh Environments)
High Durability (By Virtue Of Contactless Operation)
Higher Flexibility For System Design (Using Coils Or Springs As Sensors)
Insensitive to Non-conductive Environmental Interferers (such As Dirt, Dust, Oil etc.)
Magnet-free Operation
Supply Voltage: 5 V, typ
Supply Voltage, IO: 1.8V to 5.5V
Stand-by Current: 250uA, typ
Rp Resolution: 8-bit
LC Frequency Range: 5kHz to 5MHz

产品应用

Proximity Sensing
Level Sensing
Lateral Position Sensing

产品说明

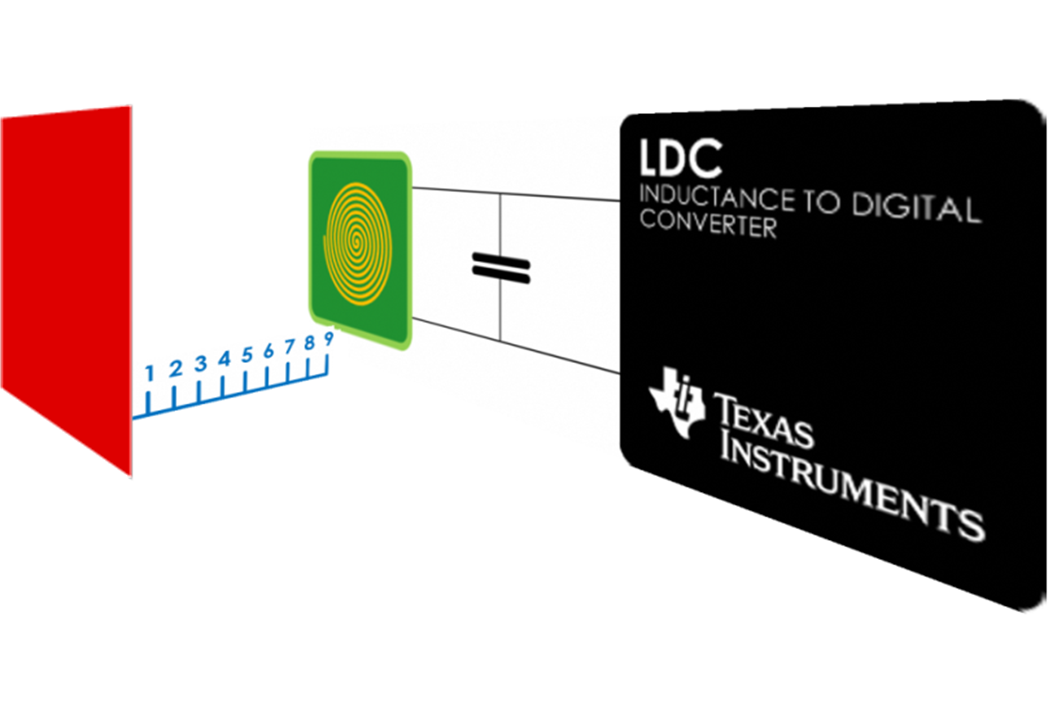

Inductive sensing is a contactless, short-range sensing technology enabling high-resolution and low-cost position sensing of conductive targets, even in harsh environments. Using a coil or spring as a sensor, the LDC1051 inductance-to-digital converter provides system designers a way to achieve high performance and reliability at a lower system cost than other competing solutions.

The LDC1051 is pin compatible with the LDC1000 (16-bit Rp/24-bit L) and the LDC1041 (8-bit Rp/24-bit L). This family of devices offers system designers different resolution options based on their application and system requirements.

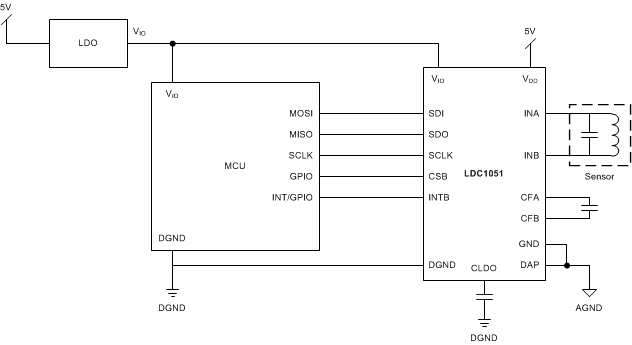

The LDC1051 is available in a 5mm x 4mm WSON-16 package. Device programming via SPI allows for easy configuration using a microcontroller.

Device Information

ORDER NUMBER	PACKAGE	BODY SIZE
LDC1051NHRT	WSON (16)	5 mm × 4 mm
LDC1051NHRR	WSON (16)	5 mm × 4 mm
LDC1051NHRJ	WSON (16)	5 mm × 4 mm
