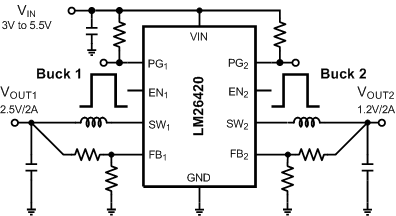

LM26420 - 双路 2.0A,高效同步降压 DC-DC 稳压器
LM26420是TI德州仪器公司的一款转换器(集成开关)产品,LM26420是双路 2.0A,高效同步降压 DC-DC 稳压器,本站介绍了LM26420的封装应用图解、特点和优点、功能等,并给出了与LM26420相关的TI元器件型号供参考。
LM26420 - 双路 2.0A,高效同步降压 DC-DC 稳压器 - 转换器(集成开关) - DC/DC开关稳压器 - 德州仪器
- Input Voltage Range of 3 V to 5.5 V
- Output Voltage Range of 0.8 V to 4.5 V
- 2-A Output Current per Regulator
- High Switching Frequency: 2.2 MHz (LM26420X) 0.55 MHz (LM26420Y)
- 0.8 V, 1.5% Internal Voltage Reference
- Internal Soft-start
- Independent Power Good and Precision Enable for Each Output
- Current Mode, PWM Operation
- Thermal Shutdown
- Overvoltage Protection
- Start-up into Pre-biased Output Loads
- Regulators are 180° Out of Phase
- LM26420-Q0: AEC-Q100 Grade 0 (Q0) Qualified (TJ = –40°C to 150°C) LM26420-Q1: AEC-Q100 Grade 1 (Q1) Qualified (TJ = –40°C to 125°C)
- Compliant with CISPR25 Class 5 Conducted Emissions
- Local 5 V to Vcore of FPGAs
- Core Power in HDDs and Set-Top Boxes
- USB Powered Devices
- Powering Core and I/O Voltages for CPUs and ASICs
- Automotive Camera, Infotainment, and Clusters
space
The LM26420 regulator is a monolithic, high-efficiency dual PWM step-down DC-DC converter. This device has the ability to drive two 2-A loads with an internal 75-mΩ PMOS top switch and an internal 50-mΩ NMOS bottom switch using state-of-the-art BICMOS technology results in the best power density available. The world-class control circuitry allow on times as low as 30 ns, thus supporting exceptionally high-frequency conversion over the entire 3-V to 5.5-V input operating range down to the minimum output voltage of 0.8 V.

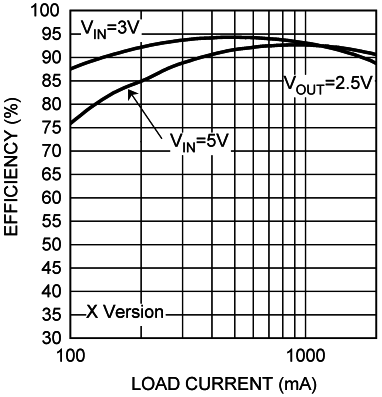

Although the operating frequency is high, efficiencies up to 93% are easy to achieve. External shutdown is included, featuring an ultra-low standby current. The LM26420 utilizes current-mode control and internal compensation to provide high performance regulation over a wide range of operating conditions.
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| LM26420 | HTSSOP (20) | 6.50 mm x 4.40 mm |
| WQFN (16) | 4.00 mm x 4.00 mm |
