LM27313 - 具有 30V 内部 FET 开关（采用 SOT-23 封装）的 1.6 MHz 升压转换器

LM27313是TI德州仪器公司的一款转换器（集成开关）产品，LM27313是具有 30V 内部 FET 开关（采用 SOT-23 封装）的 1.6 MHz 升压转换器，本站介绍了LM27313的封装应用图解、特点和优点、功能等，并给出了与LM27313相关的TI元器件型号供参考。

LM27313 - 具有 30V 内部 FET 开关（采用 SOT-23 封装）的 1.6 MHz 升压转换器 - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性

LM27313-Q1 is an Automotive-Grade Product that is AEC-Q100 Grade 1 Qualified (–40°C to +125°C Operating Junction Temperature)
30-V DMOS FET Switch
1.6-MHz Switching Frequency
Low RDS(ON) DMOS FET
Switch Current up to 800 mA
Wide Input Voltage Range (2.7 V to 14 V)
Low Shutdown Current (< 1 µA)
5-Lead SOT-23 Package
Uses Tiny Capacitors and Inductors
Cycle-by-Cycle Current Limiting
Internally Compensated

产品应用

White LED Current Source
PDAs and Palm-Top Computers
Digital Cameras
Portable Phones, Games, and Media Players
GPS Devices

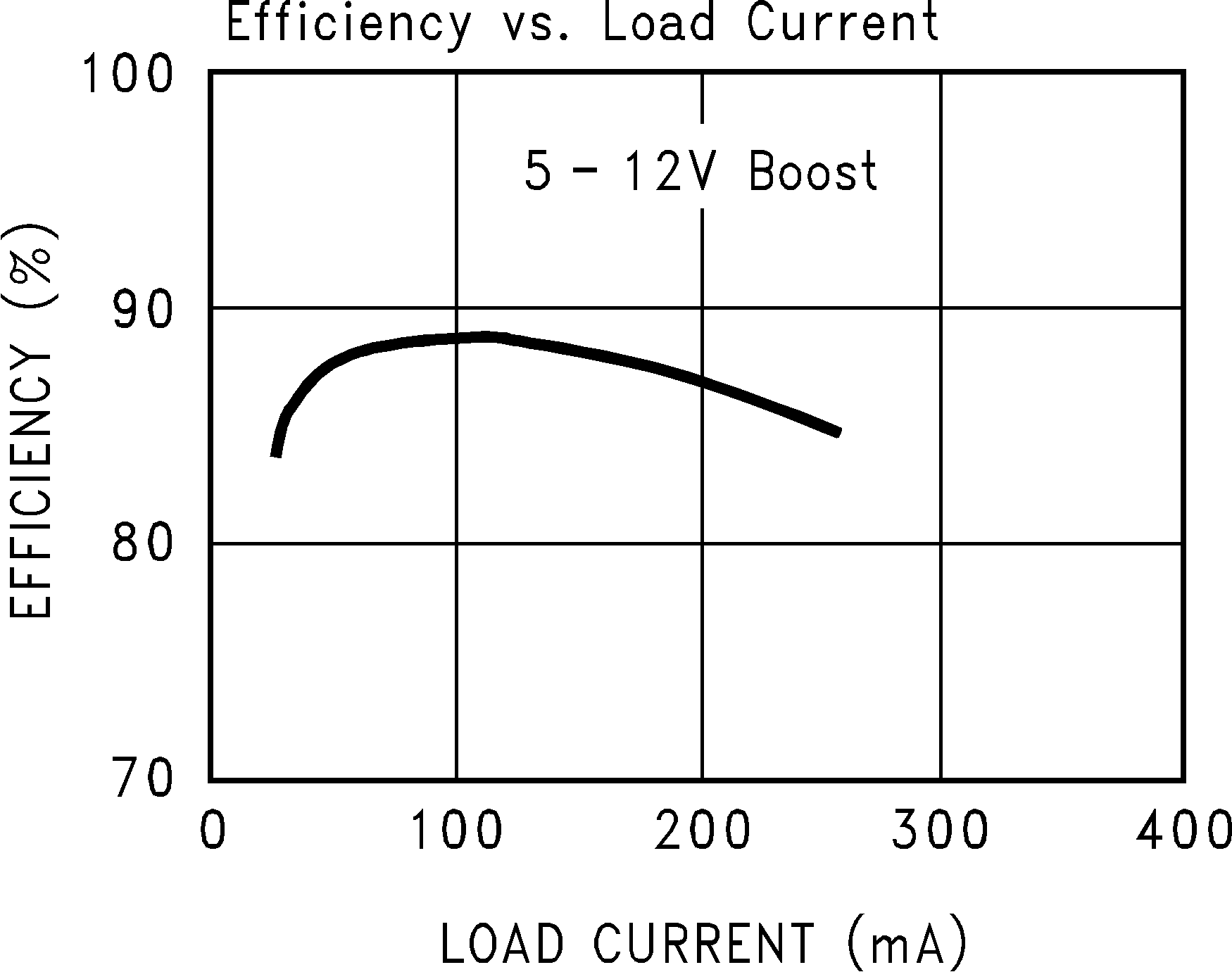

产品说明

The LM27313/-Q1 switching regulator is a current-mode boost converter with a fixed operating frequency of 1.6 MHz.

The use of the SOT-23 package, made possible by the minimal losses of the 800-mA switch, and the small inductors and capacitors result in extremely high power density. The 30-V internal switch makes these solutions perfect for boosting to voltages of 5 V to 28 V.

This device has a logic-level shutdown pin that can be used to reduce quiescent current and extend battery life.

Protection is provided through cycle-by-cycle current limiting and thermal shutdown. Internal compensation simplifies design and reduces component count.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
LM27313	SOT-23 (5)	2.90 mm x 1.60 mm
LM27313-Q1	SOT-23 (5)	2.90 mm x 1.60 mm
