LM2736 - 超薄 SOT23 750mA 负载降压 DC-DC 稳压器

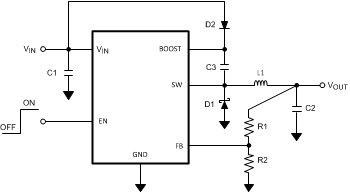

LM2736是TI德州仪器公司的一款转换器（集成开关）产品，LM2736是超薄 SOT23 750mA 负载降压 DC-DC 稳压器，本站介绍了LM2736的封装应用图解、特点和优点、功能等，并给出了与LM2736相关的TI元器件型号供参考。

LM2736 - 超薄 SOT23 750mA 负载降压 DC-DC 稳压器 - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性

Thin SOT-6 Package
3.0 V to 18 V Input Voltage Range
1.25 V to 16 V Output Voltage Range
750 mA Output Current
550 kHz (LM2736Y) and 1.6 MHz (LM2736X) Switching Frequencies
350 mΩ NMOS Switch
30 nA Shutdown Current
1.25 V, 2% Internal Voltage Reference
Internal Soft-Start
Current-Mode, PWM Operation
WEBENCH® Online Design Tool
Thermal Shutdown

产品应用

Local Point of Load Regulation
Core Power in HDDs
Set-Top Boxes
Battery Powered Devices
USB Powered Devices
DSL Modems
Notebook Computers

产品说明

The LM2736 regulator is a monolithic, high frequency, PWM step-down DC/DC converter in a 6-pin Thin SOT package. It provides all the active functions to provide local DC/DC conversion with fast transient response and accurate regulation in the smallest possible PCB area.

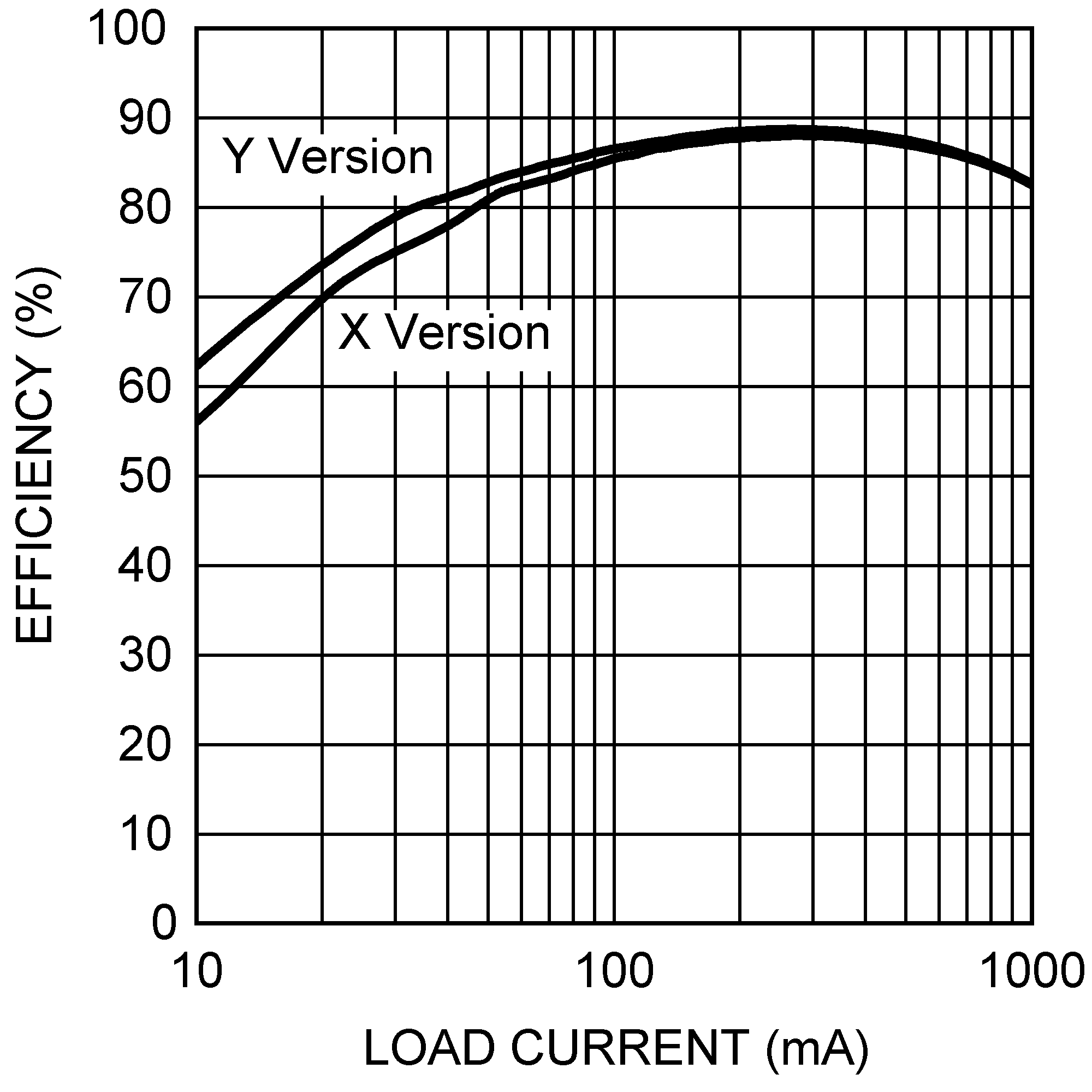

With a minimum of external components and online design support through WEBENCH®, the LM2736 is easy to use. The ability to drive 750 mA loads with an internal 350 mΩ NMOS switch using state-of-the-art 0.5 µm BiCMOS technology results in the best power density available. The world class control circuitry allows for on-times as low as 13 ns, thus supporting exceptionally high frequency conversion over the entire 3 V to 18 V input operating range down to the minimum output voltage of 1.25 V. Switching frequency is internally set to 550 kHz (LM2736Y) or 1.6 MHz (LM2736X), allowing the use of extremely small surface mount inductors and chip capacitors. Even though the operating frequencies are very high, efficiencies up to 90% are easy to achieve. External shutdown is included, featuring an ultra-low stand-by current of 30 nA. The LM2736 utilizes current-mode control and internal compensation to provide high-performance regulation over a wide range of operating conditions. Additional features include internal soft-start circuitry to reduce inrush current, pulse-by-pulse current limit, thermal shutdown, and output over-voltage protection.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
LM2736	SOT (6)	2.90 mm x 1.60 mm
