• Calibrated Linear Scale Factor of 6.25 mV/°C
• Rated for Full −40°C to +125°C Range
• Suitable for Remote Applications
• Available in SOT-23 and TO-92 Packages
• LM60-Q1 is AEC-Q100 Grade 1 Qualified and is Manufactured on an Automotive Grade Flow.
• Key Specifications
  • Accuracy at 25°C: ± 2°C and ± 3°C (Maximum)
  • Accuracy for −40°C to +125°C: ±4°C (Maximum)
  • Accuracy for −25°C to +125°C: ±3°C (Maximum)
  • Temperature Slope: 6.25 mV/°C
  • Power-Supply Voltage Range: 2.7 V to 10 V
  • Current Drain at 25°C: 110 μA (Maximum)
  • Nonlinearity: ±0.8°C (Maximum)
  • Output Impedance: 800 Ω (Maximum)

• Automotive
• Cell Phones and Computers
• Power Supply Modules
• Battery Management
• Fax Machines and Printers
• HVAC and Disk Drives
• Appliances

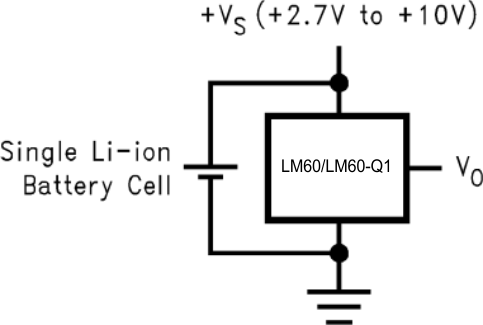

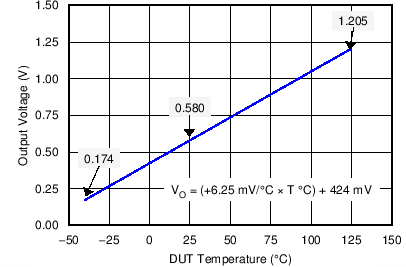

The LM60 and LM60-Q1 devices are precision integrated-circuit temperature sensors that can sense a −40°C to +125°C temperature range while operating from a single 2.7-V supply. The output voltage of the device is linearly proportional to Celsius (Centigrade) temperature (6.25 mV/°C) and has a DC offset of 424 mV. The offset allows reading negative temperatures without the need for a negative supply. The nominal output voltage of the device ranges from 174 mV to 1205 mV for a −40°C to +125°C temperature range. The device is calibrated to provide accuracies of ±2°C at room temperature and ±3°C over the full −25°C to +125°C temperature range.

The linear output of the device, 424-mV offset, and factory calibration simplify external circuitry required in a single supply environment where reading negative temperatures is required. Because the quiescent current of the device is less than 110 μA, self-heating is limited to a very low 0.1°C in still air in the SOT-23 package. Shutdown capability for the device is intrinsic because its inherent low power consumption allows it to be powered directly from the output of many logic gates.
