LMH0387 - 3 Gbps HD/SD SDI 可配置 I/O 自适应电缆均衡器/电缆驱动器

LMH0387是TI德州仪器公司的一款串行数字接口产品，LMH0387是3 Gbps HD/SD SDI 可配置 I/O 自适应电缆均衡器/电缆驱动器，本站介绍了LMH0387的封装应用图解、特点和优点、功能等，并给出了与LMH0387相关的TI元器件型号供参考。

LMH0387 - 3 Gbps HD/SD SDI 可配置 I/O 自适应电缆均衡器/电缆驱动器 - 串行数字接口 - 视频：广播和专业 - 德州仪器

产品特性

ST 424, ST 292, ST 344, and ST 259 Compliant (11)
Supports DVB-ASI at 270 Mbps
Data Rates: 125 Mbps to 2.97 Gbps when Receiving (DC to 2.97 Gbps when Driving Cable)
Equalizes up to 120 Meters of Belden 1694A at 2.97 Gbps, up to 200 Meters of Belden 1694A at 1.485 Gbps, or up to 400 Meters of Belden 1694A at 270 Mbps
Integrated Return Loss Network (No External Components Required)
Power Saving Modes
Cable Driver Selectable Slew Rate
Internally Terminated 100-Ω LVDS Receiver Outputs With Programmable Common Mode Voltage and Swing
Programmable Launch Amplitude Optimization for Receiver
Cable Length Indication
Single 3.3-V Supply Operation
48-Pin Laminate TLGA Package
Industrial Temperature Range: −40°C to 85°C

产品应用

ST 424 (SMPTE 424M), ST 292 (SMPTE 292M), and ST 259 (SMPTE 259M) Serial Digital Interfaces (11)
Digital Video Servers and Modular Equipment
Video Encoders and Decoders
Distribution Amplifiers

产品说明

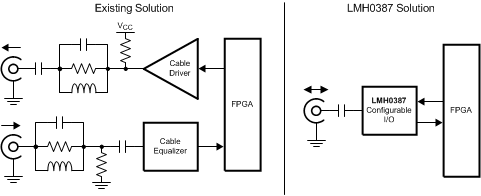

The LMH0387 3 Gbps HD/SD SDI Configurable I/O Adaptive Cable Equalizer / Cable Driver provides a single chip interface to a BNC. The device can be configured either in the input mode as an equalizer to receive data over coaxial cable or in the output mode as a cable driver to transmit data over coaxial cable. The same I/O pin is used both for the input and the output functions of the device, allowing the system designer the flexibility to use a BNC attached to the device as either an input or an output.

The device operates over a wide range of data rates from 125 Mbps to 2.97 Gbps (DC to 2.97 Gbps when driving cable) and supports ST 424, ST 292, ST 344, and ST 259. The return loss network is integrated within the device so no external components are required to meet the SMPTE return loss specification. The LMH0387 offers designers flexibility in system design and quicker time to market.

In the input mode, the LMH0387 features include a power-saving sleep mode, programmable output common mode voltage and swing, cable length indication, launch amplitude optimization, input signal detection, and an SPI interface. In the output mode, the LMH0387 features include two selectable slew rates for ST 424 / 292 and ST 259 compliance, and output driver power-down control.

The device is available in a 7-mm × 7-mm 48-pin laminate Thin Laminate Grid Array (TLGA) Package.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
LMH0387	TLGA (48)	7.00 mm × 7.00 mm
