LMH0394 - 3G HD/SD SDI 低功耗远距离自适应电缆均衡器

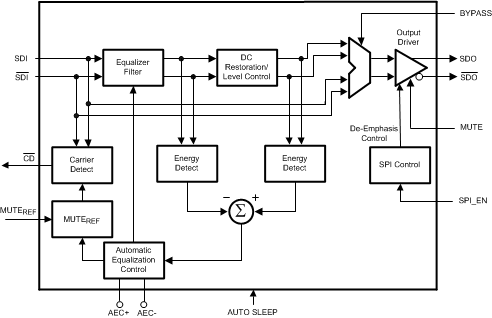

LMH0394是TI德州仪器公司的一款串行数字接口产品，LMH0394是3G HD/SD SDI 低功耗远距离自适应电缆均衡器，本站介绍了LMH0394的封装应用图解、特点和优点、功能等，并给出了与LMH0394相关的TI元器件型号供参考。

LMH0394 - 3G HD/SD SDI 低功耗远距离自适应电缆均衡器 - 串行数字接口 - 视频：广播和专业 - 德州仪器

产品特性

ST 424, ST 292, ST 344, ST 259, and DVB-ASI Compliant(2)
Equalized Cable Lengths (Belden 1694A): 200 Meters at 2.97 Gbps, 220 Meters at 1.485 Gbps, and 400 Meters at 270 Mbps
Ultra Low Power Consumption: 115 mW (Normal Operation)
Power-Save Mode With Auto Sleep Control (17-mW Typical Power Consumption in Power-Save Mode)
Designed for Crosstalk Immunity
Output De-Emphasis to Compensate for FR4 Board Trace Losses
Digital and Analog Programmable MUTEREF Threshold
Optional SPI Register Access
Input Data Rates: 125 Mbps to 2.97 Gbps
Internally Terminated 100-Ω LVDS Outputs With Programmable Output Common-Mode Voltage and Swing
Programmable Launch Amplitude Optimization
Cable Length Indicator
Single 2.5-V Supply Operation
16-pin WQFN Package
Industrial Temperature Range: −40°C to +85°C
Footprint Compatible with the LMH0384 and also the LMH0344, LMH0044, and LMH0074 in Pin Mode

产品应用

ST 424, ST 292, ST 344, and ST 259 Serial Digital Interfaces(2)
Broadcast Video Routers, Switchers, and Distribution Amplifiers

产品说明

The LMH0394 3-Gbps HD/SD SDI Low Power Extended Reach Adaptive Cable Equalizer is designed to equalize data transmitted over cable (or any media with similar dispersive loss characteristics). The equalizer operates over a wide range of data rates from 125 Mbps to 2.97 Gbps and supports ST 424, ST 292, ST 344, ST 259, and DVB-ASI standards(2).

The LMH0394 provides extended cable reach with improved immunity to crosstalk and ultra low power consumption. The equalizer includes active sensing circuitry that ensures robust performance and enhanced immunity to variations in the input signal launch amplitude. The output driver offers programmable de-emphasis for up to 40” of FR4 trace losses. The LMH0394 includes power management to further reduce power consumption when no input signal is present.

The LMH0394 supports two modes of operation. In pin mode, the LMH0394 operates with control pins to set its operating state, and is footprint compatible with the LMH0384, LMH0344, and legacy SDI equalizers. In SPI mode, an optional SPI serial interface can be used to access and configure multiple LMH0394 devices in a daisy-chain configuration. This allows users to program the output common-mode voltage and swing, output de-emphasis level, input launch amplitude, and power management settings. Users may also access a cable length indicator and all pin mode features.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
LMH0394	WQFN (16)	4.00 mm × 4.00 mm
