LMK61A2-312M技术文档下载：

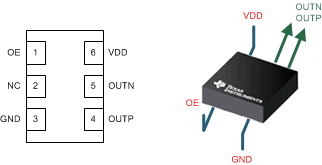

LMK61A2-312M - 产品图解：
LMK61A2-312M - 超低抖动固定频率差分振荡器 - 312M50
LMK61A2-312M是TI公司的一款无产品，LMK61A2-312M是超低抖动固定频率差分振荡器 - 312M50，本页介绍了LMK61A2-312M的产品说明、应用、特性等，并给出了与LMK61A2-312M相关的TI元器件型号供参考。
LMK61A2-312M - 超低抖动固定频率差分振荡器 - 312M50 - 无 - 振荡器 - TI公司（Texas Instruments，德州仪器）
产品特性
- Ultra-low Noise, High Performance
- Jitter: 90 fs RMS typical Fout > 100 MHz
- PSRR: -70 dBc, robust supply noise immunity
- Supported Output Format
- LVPECL up to 1 GHz
- LVDS up to 900 MHz
- HCSL up to 400 MHz
- Total Frequency Tolerance of ± 50 ppm
- 3.3 V Operating Voltage
- Industrial Temperature Range (-40ºC to +85ºC)
- 7 mm x 5 mm 6-pin Package that is Pin-compatible with Industry Standard 7050 XO Package
产品应用
- High-Performance Replacement for Crystal-, SAW-, or Silicon-based Oscillators
- Switches, Routers, Network Line Cards, Base Band Units (BBU), Servers, Storage/SAN
- Test and Measurement
- Medical Imaging
- FPGA, Processor Attach
产品说明
The LMK61XX is an ultra-low jitter oscillator that generates a commonly used reference clock. The device is pre-programmed in factory to support any reference clock frequency; supported output formats are LVPECL up to 1 GHz, LVDS up to 900 MHz, and HCSL up to 400 MHz. Internal power conditioning provide excellent power supply ripple rejection (PSRR), reducing the cost and complexity of the power delivery network. The device operates from a single 3.3 V ± 5% supply.
产品器件信息
| PART NUMBER | OUTPUT FREQ (MHz) AND FORMAT | PACKAGE | BODY SIZE (NOM) |
|---|---|---|---|
| LMK61A2-100M00SIA | 100 LVDS | 6-pin QFM | 7.0 mm x 5.0 mm |
| LMK61A2-125M00SIA | 125 LVDS | ||
| LMK61A2-156M25SIA | 156.25 LVDS | ||
| LMK61A2-312M50SIA | 312.5 LVDS | ||
| LMK61E2-100M00SIA | 100 LVPECL | ||
| LMK61E2-125M00SIA | 125 LVPECL | ||
| LMK61E2-156M25SIA | 156.25 LVPECL | ||
| LMK61E2-312M50SIA | 312.5 LVPECL | ||
| LMK61I2-100M00SIA | 100 HCSL |
