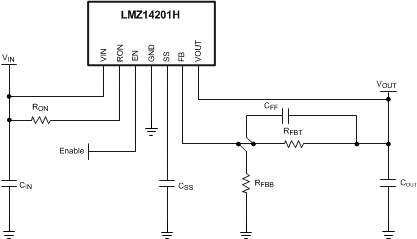

LMZ14201H - 产品图解：
LMZ14201H-1A SIMPLE SWITCHER Power Module for High Output Voltage
LMZ14201H-非隔离式模块-电源模块-电源管理
LMZ14201H-LMZ14201H 1A SIMPLE SWITCHER? 电源模块，此模块针对高输出电压应用 (Rev. D)
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - LMZ14201H介绍

LMZ14201H - 1A SIMPLE SWITCHER Power Module for High Output Voltage

LMZ14201H是TI德州仪器公司的一款非隔离式模块产品，LMZ14201H是1A SIMPLE SWITCHER Power Module for High Output Voltage，本站介绍了LMZ14201H的封装应用图解、特点和优点、功能等，并给出了与LMZ14201H相关的TI元器件型号供参考。

LMZ14201H - 1A SIMPLE SWITCHER Power Module for High Output Voltage - 非隔离式模块 - 电源模块 - 德州仪器

产品特性
  • Integrated Shielded Inductor
  • Simple PCB Layout
  • Flexible Start-Up Sequencing Using External Soft-Start and Precision Enable
  • Protection Against Inrush Currents
  • Input UVLO and Output Short Circuit Protection
  • –40°C to 125°C Junction Temperature Range
  • Single Exposed Pad and Standard Pinout for Easy Mounting and Manufacturing
  • Low Output Voltage Ripple
  • Pin-to-Pin Compatible Family:
    • LMZ14203H/2H/1H (42 V Maximum 3-A, 2-A, 1-A)
    • LMZ14203/2/1 (42 V Maximum 3-A, 2-A, 1-A)
    • LMZ12003/2/1 (20 V Maximum 3-A, 2-A, 1-A)
  • Fully Enabled for WEBENCH® Power Designer
  • Electrical Specifications
    • Up to 1-A Output Current
    • Input Voltage Range 6 V to 42 V
    • Output Voltage as Low as 5 V
    • Efficiency up to 97%
  • Performance Benefits
    • High Efficiency Reduces System Heat Generation
    • No Compensation Required
    • Low Package Thermal Resistance
    • Low Radiated EMI (EN 55022 Class B Tested)
EN 55022:2006, +A1:2007, FCC Part 15 Subpart B: 2007.
产品应用
  • Intermediate Bus Conversions to 12-V and 24-V Rail
  • Time-Critical Projects
  • Space Constrained and High Thermal Requirement Applications
  • Negative Output Voltage Applications
产品说明

The LMZ14201H SIMPLESWITCHER® power module is an easy-to-use step-down DC-DC solution that can drive up to 1-A load with exceptional power conversion efficiency, line and load regulation, and output accuracy. The LMZ14201H is available in an innovative package that enhances thermal performance and allows for hand or machine soldering.

The LMZ14201H can accept an input voltage rail between 6 V and 42 V and deliver an adjustable and highly accurate output voltage as low as 5 V. The LMZ14201H only requires three external resistors and four external capacitors to complete the power solution. The LMZ14201H is a reliable and robust design with the following protection features: thermal shutdown, input undervoltage lockout, output overvoltage protection, short-circuit protection, output current limit, and allows start-up into a prebiased output. A single resistor adjusts the switching frequency up to 1 MHz.

Device Information(1)(2)
PART NUMBERPACKAGEBODY SIZE (NOM)
LMZ14201HTO-PMOD (7)10.16 mm × 9.85 mm
