LMZ23610 - 具有 36V 最大输入电压和电流共享的 10A SIMPLE SWITCHER? 电源模块

LMZ23610是TI德州仪器公司的一款非隔离式模块产品，LMZ23610是具有 36V 最大输入电压和电流共享的 10A SIMPLE SWITCHER? 电源模块，本站介绍了LMZ23610的封装应用图解、特点和优点、功能等，并给出了与LMZ23610相关的TI元器件型号供参考。

LMZ23610 - 具有 36V 最大输入电压和电流共享的 10A SIMPLE SWITCHER? 电源模块 - 非隔离式模块 - 电源模块 - 德州仪器

产品特性

Integrated Shielded Inductor
Simple PCB Layout
Frequency Synchronization Input (350 kHz to 600 kHz)
Current Sharing Capability
Flexible Startup Sequencing Using External Soft-start, Tracking and Precision Enable
Protection Against Inrush Currents and Faults Such as Input UVLO and Output Short Circuit
Junction Temperature Range –40°C to 125°C
Single Exposed Pad and Standard Pinout for Easy Mounting and Manufacturing
Fully Enabled for WEBENCH® Power Designer
Pin Compatible With LMZ22010/08, LMZ12010/08, LMZ23608/06H, and LMZ13610/08/06H
Performance Benefits
- High Efficiency Reduces System Heat Generation
- Low Radiated Emissions (EMI) Tested to EN55022 Class B Standard
- Only 7 External Components
- Low Output Voltage Ripple
- No External Heat Sink Required
- Simple Current Sharing for Higher Current Applications
Electrical Specifications
- 50-W Maximum Total Output Power
- Up to 10-A Output Current
- Input Voltage Range 6 V to 36 V
- Output Voltage Range 0.8 V to 6 V
- Efficiency up to 92%

EN 55022:2006, +A1:2007, FCC Part 15 Subpart B, Tested on Evaluation Board with EMI Configuration

产品应用

Point-of-load Conversions from 12-V and 24-V Input Rail
Time-Critical Projects
Space Constrained / High Thermal Requirement Applications
Negative Output Voltage Applications (See AN-2027, SNVA425)

产品说明

The LMZ23610 SIMPLESWITCHER® power module is an easy-to-use step-down DC-DC solution capable of driving up to 10-A load. The LMZ23610 is available in an innovative package that enhances thermal performance and allows for hand or machine soldering.

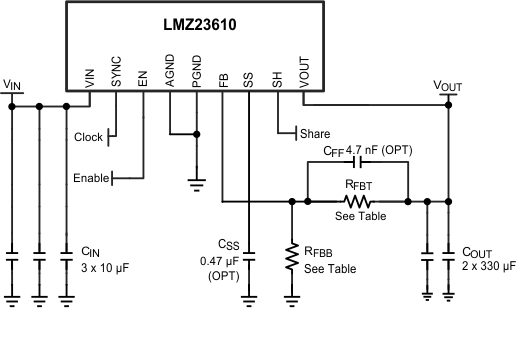

The LMZ23610 can accept an input voltage rail between 6 V and 36 V and can deliver an adjustable and highly accurate output voltage as low as 0.8 V. The LMZ23610 only requires two external resistors and three external capacitors to complete the power solution.

The LMZ23610 is a reliable and robust design with the following protection features: thermal shutdown, input undervoltage lockout, output overvoltage protection, short circuit protection, output current limit, and the device allows start-up into a prebiased output. The sync input allows synchronization over the 350- to 600-kHz switching frequency range.

Device Information(1)(2)

PART NUMBER	PACKAGE	BODY SIZE (NOM)
LMZ23610	NDY (11)	15.00 mm × 15.00 mm
