LP2985A-10 - 具有关断状态的 150mA 低噪声低压降稳压器

LP2985A-10是TI德州仪器公司的一款单通道LDO产品，LP2985A-10是具有关断状态的 150mA 低噪声低压降稳压器，本站介绍了LP2985A-10的封装应用图解、特点和优点、功能等，并给出了与LP2985A-10相关的TI元器件型号供参考。

LP2985A-10 - 具有关断状态的 150mA 低噪声低压降稳压器 - 单通道LDO - 线性稳压器(LDO) - 德州仪器

产品特性

Output Tolerance of
- 1% (A Grade)
- 1.5% (Standard Grade)

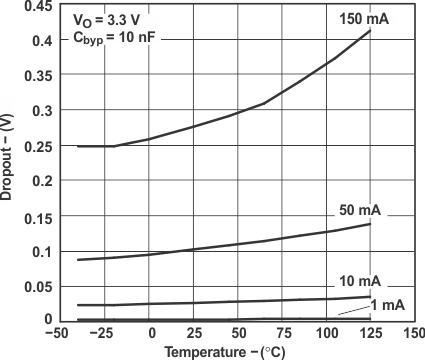

Ultra-Low Dropout, Typically
- 280 mV at Full Load of 150 mA
- 7 mV at 1 mA
Wide VIN Range: 16 V Max
Low IQ: 850 μA at Full Load at 150 mA
Shutdown Current: 0.01 μA Typ
Low Noise: 30 μVRMS With 10-nF Bypass Capacitor
Stable With Low-ESR Capacitors, Including Ceramic
Overcurrent and Thermal Protection
High Peak-Current Capability
ESD Protection Exceeds JESD22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)

产品应用

Portable Devices
Digital Cameras and Camcorders
CD Players
MP3 Players

产品说明

The LP2985 family of fixed-output, low-dropout regulators offers exceptional, cost-effective performance for both portable and nonportable applications. Available in voltages of 1.8 V, 2.5 V, 2.8 V, 2.9 V, 3 V, 3.1 V, 3.3V, 5V, and 10V, the family has an output tolerance of 1% for the A version (1.5% for the non-A version) and is capable of delivering 150-mA continuous load current. Standard regulator features, such as overcurrent and overtemperature protection, are included.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
LP2985	SOT-23 (5)	2.90 mm x 1.60 mm
