LP38513 - 3A 快速响应超低压降线性稳压器

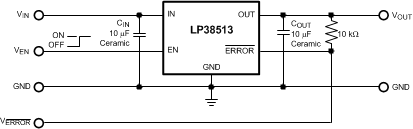

LP38513是TI德州仪器公司的一款单通道LDO产品，LP38513是3A 快速响应超低压降线性稳压器，本站介绍了LP38513的封装应用图解、特点和优点、功能等，并给出了与LP38513相关的TI元器件型号供参考。

LP38513 - 3A 快速响应超低压降线性稳压器 - 单通道LDO - 线性稳压器(LDO) - 德州仪器

产品特性

Input Supply Voltage 2.25 V to 5.5 V
Conversions from 2.5-V Rail to 1.8-V Rail
Stable with Ceramic Capacitors
Low Ground Pin Current
Load Regulation of 0.1% for 10 mA to 3-A Load Current
60-μA Typical Quiescent Current in Shutdown Mode
Specified Output Current of 3 A
Specified VOUT Accuracy of ±2.6% With TJ from 0°C to +125°C
ERROR Flag Indicates VOUT Status
Overtemperature and Overcurrent Protection
−40°C to +125°C Operating TJ Range

产品应用

Microprocessor Power Supplies
GTL, GTL+, BTL, and SSTL Bus Terminators
Power Supplies for DSPs
SCSI Terminator
Post Regulators
Battery Chargers
Other Battery Powered Applications

产品说明

The LP38513 fast-response ultra-low dropout linear regulator operates from a 2.25-V to 5.5-V input supply. This device responds very quickly to step changes in line or load conditions, making it suitable for low-voltage microprocessor applications. Developed on a CMOS process, with a PMOS pass transistor, the LP38513 has low quiescent-current operation independent of the output load current.

Ground Pin Current: Typically 12 mA at 3-A load current.
Disable Mode: Typically 60 µA quiescent current when the enable (EN) pin is pulled low.
ERROR Flag: The ERROR flag goes low if VOUT falls more than typically 15% below the nominal value.
Precision Output Voltage: A specified VOUT accuracy of ±2.6% with TJ from 0°C to 125°C.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
LP38513	TO-220 (5)	14.986 mm × 10.16 mm
LP38513	DDPAK/TO-263 (5)	10.16 mm × 8.42 mm
