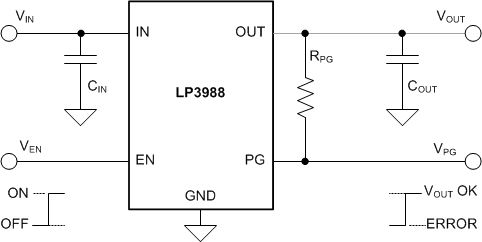

LP3988 - 产品图解:
LP3988-具有电源正常指示功能的微功耗、150mA 超低压降 CMOS 稳压器
LP3988-单通道LDO-线性稳压器(LDO)-电源管理
承诺原装正品
专营TI,真正优化您的供应链
TI产品 - LP3988介绍
LP3988 - 具有电源正常指示功能的微功耗、150mA 超低压降 CMOS 稳压器

LP3988是TI公司的一款单通道LDO产品,LP3988是具有电源正常指示功能的微功耗、150mA 超低压降 CMOS 稳压器,本页介绍了LP3988的产品说明、应用、特性等,并给出了与LP3988相关的TI元器件型号供参考。

LP3988 - 具有电源正常指示功能的微功耗、150mA 超低压降 CMOS 稳压器 - 单通道LDO - 线性稳压器(LDO) - TI公司(Texas Instruments,德州仪器)

产品特性
  • Input Voltage Range: 2.5 V to 6 V
  • Output Current: 150 mA
  • PSRR at 10 kHz: 40 dB
  • Quiescent Current When Shut Down: ≤ 1µA
  • Fast Turnon Time: 100 µs (Typical)
  • Dropout With 150-mA load: 80 mV (Typical)
  • Junction Temperature Range for Operation: −40°C to +125°C
  • Power-Good Flag Output
  • Logic Controlled Enable
  • Thermal Shutdown and Short-Circuit Current Limit
  • Stable with Ceramic and High-Quality Tantalum Capacitors
产品应用
  • CDMA Cellular Handsets
  • Wideband CDMA Cellular Handsets
  • GSM Cellular Handsets
  • Portable Information Appliances
  • Tiny 3.3 V ± 5% to 2.85 V, 150-mA Converter
产品说明

The LP3988 is a 150-mA low dropout regulator designed specially to meet requirements of portable battery applications. The LP3988 is designed to work with space-saving, small 1-µF ceramic capacitors. The LP3988 features a Power Good (PG) output that indicates a faulty output condition. The device is ideal for mobile phone and similar battery-powered wireless applications. It provides up to 150 mA output current from a 2.5-V to 6-V input, consuming less than 1 µA in disable mode and has fast turnon time less than 200 µs.

The LP3988 device's performance is optimized for battery-powered systems to deliver low noise, extremely low dropout voltage, and low quiescent current. Regulator ground current increases only slightly in dropout, further prolonging the battery life.

Power supply rejection is better than 60 dB at low frequencies and starts to roll off at 10 kHz. High power-supply rejection is maintained down to lower input-voltage levels common to battery-operated circuits.

The LP3988 is available in a 5-pin SOT-23 package and a 5-pin thin DSBGA package. Performance is specified for −40°C to +125°C temperature range. For all available output voltage and package options, see the Package Option Addendum (POA) at the end of the data sheet.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
LP3988SOT-23 (5)2.90 mm × 1.60 mm
DSBGA (5)1.502 mm × 1.045 mm(2)
