MC33063A-Q1 - 汽车类 1.5A 峰值升压/降压/反向开关稳压器

MC33063A-Q1是TI德州仪器公司的一款转换器（集成开关）产品，MC33063A-Q1是汽车类 1.5A 峰值升压/降压/反向开关稳压器，本站介绍了MC33063A-Q1的封装应用图解、特点和优点、功能等，并给出了与MC33063A-Q1相关的TI元器件型号供参考。

MC33063A-Q1 - 汽车类 1.5A 峰值升压/降压/反向开关稳压器 - 转换器（集成开关） - DC/DC开关稳压器 - 德州仪器

产品特性

AEC-Q100 Qualified With the Following Results:
- Device HBM ESD Classification Level 2
- Device CDM ESD Classification Level C4B
Wide Input Voltage Range: 3 V to 40 V
High Output Switch Current: Up to 1.5 A
Adjustable Output Voltage
Oscillator Frequency: Up to 100 kHz
Precision Internal Reference: 2%
Short-Circuit Current Limiting
Low Standby Current

产品应用

Automotive: Buck, Boost, and Inverting Topologies

产品说明

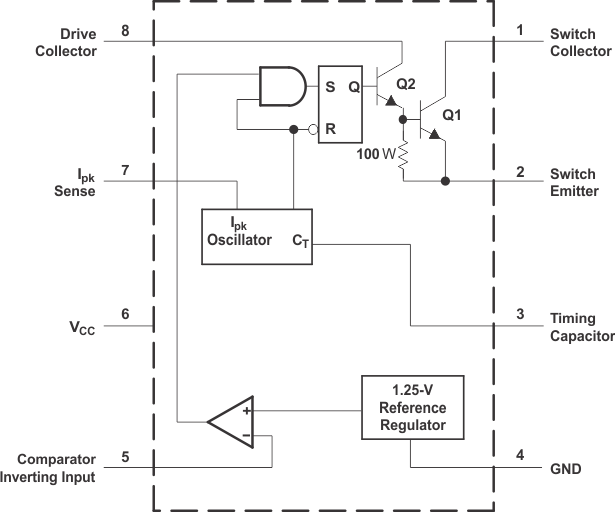

The MC33063A-Q1 device is an easy-to-use IC containing all the primary circuitry needed for building simple DC-DC converters. The device primarily consists of an internal temperature-compensated reference, a comparator, an oscillator, a PWM controller with active current limiting, a driver, and a high-current output switch. Thus, the device requires minimal external components to build converters in the boost, buck, and inverting topologies.

The MC33063A-Q1 device is characterized for operation from –40°C to 125°C.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
MC33063A-Q1	SOIC (8)	4.90 mm × 3.91 mm
