MSP430FG437 - 16 位超低功耗 MCU，具有 32KB 闪存、1KB RAM、12 位 ADC、双 DAC、DMA、3 个 OPAMP 和 128 段 LCD

MSP430FG437是TI德州仪器公司的一款超低功耗产品，MSP430FG437是16 位超低功耗 MCU，具有 32KB 闪存、1KB RAM、12 位 ADC、双 DAC、DMA、3 个 OPAMP 和 128 段 LCD，本站介绍了MSP430FG437的封装应用图解、特点和优点、功能等，并给出了与MSP430FG437相关的TI元器件型号供参考。

MSP430FG437 - 16 位超低功耗 MCU，具有 32KB 闪存、1KB RAM、12 位 ADC、双 DAC、DMA、3 个 OPAMP 和 128 段 LCD - 超低功耗 - 低功耗MCU - 德州仪器

1 Device Overview

1.1 Features

Low Supply-Voltage Range, 1.8 V to 3.6 V
Ultra-Low Power Consumption
- Active Mode: 300 µA at 1 MHz, 2.2 V
- Standby Mode: 1.1 µA
- Off Mode (RAM Retention): 0.1 µA
Five Power-Saving Modes
Wakeup From Standby Mode in Less Than 6 µs
16-Bit RISC Architecture, 125-ns Instruction Cycle Time
Single-Channel Internal DMA
12-Bit Analog-to-Digital Converter (ADC) With Internal Reference, Sample-and-Hold and Autoscan Feature
Three Configurable Operational Amplifiers
Dual 12-Bit Digital-to-Analog Converters (DACs) With Synchronization
16-Bit Timer_A With Three Capture/Compare Registers
16-Bit Timer_B With Three Capture/Compare-With-Shadow Registers
On-Chip Comparator
Serial Communication Interface (USART), Select Asynchronous UART or Synchronous SPI by Software
Brownout Detector
Supply-Voltage Supervisor and Monitor With Programmable Level Detection
Bootstrap Loader (BSL)
Serial Onboard Programming, No External Programming Voltage Needed, Programmable Code Protection by Security Fuse
Integrated Liquid Crystal Display (LCD) Driver for up to 128 Segments
Available in 113-Ball BGA (ZCA) and 80-Pin QFP (PN) Packages
Section 3 Summarizes the Available Family Members
For Complete Module Descriptions, See the MSP430x4xx Family User's Guide (SLAU056)

1.2 Applications

Analog and Digital Sensor Systems
Digital Motor Control
Remote Controls
Thermostats
Digital Timers
Hand-Held Meters

1.3 Description

The Texas Instruments MSP430™ family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows the device to wake up from low-power modes to active mode in less than 6 µs.

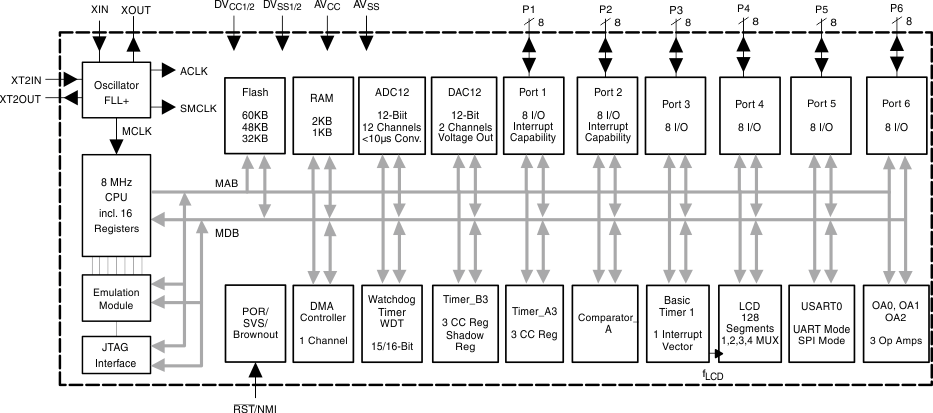

The MSP430FG43x devices are microcontrollers with two 16-bit timers, a high-performance 12-bit ADC, dual 12-bit DACs, three configurable operational amplifiers, one universal synchronous/asynchronous communication interface, DMA, 48 I/O pins, and an LCD driver.

Table 1-1 Device Information(1)

PART NUMBER	PACKAGE	BODY SIZE(2)
MSP430FG439PN	LQFP (80)	12 mm x 12 mm
MSP430FG439ZCA	BGA (113)	7 mm x 7 mm
