REF3012是TI公司的一款串联电压基准产品，REF3012是采用 SOT23-3 封装的 1.25V 输出 50ppm/℃ 漂移 50uA 静态电流的（带隙）电压参考系列，本页介绍了REF3012的产品说明、应用、特性等，并给出了与REF3012相关的TI元器件型号供参考。
REF3012 - 采用 SOT23-3 封装的 1.25V 输出 50ppm/℃ 漂移 50uA 静态电流的（带隙）电压参考系列 - 串联电压基准 - 电压基准 - TI公司（Texas Instruments，德州仪器）
- microSize Package: SOT-23-3
- Low Dropout: 1 mV
- High Output Current: 25 mA
- High Accuracy: 0.2%
- Low IQ: 42 µA (typ)
- Excellent Specified Drift Performance:
- 50 ppm/°C (max) from 0°C to 70°C
- 75 ppm/°C (max) from –40°C to +125°C
- Temperature and Pressure Transmitters
- Portable, Battery-powered Equipment
- Data Acquisition Systems
- Medical Equipment
- Handheld Test Equipment
The REF30xx is a precision, low-power, low dropout voltage, reference family available in a tiny SOT-23-3 package. The REF30xx offers excellent temperature drift and initial accuracy while operating at a quiescent current of 42 µA (typ).
The low power consumption and the relatively high precision make the REF30xx very attractive for loop-powered industrial applications such as pressure and temperature transmitter applications. The REF30xx is easy to use in intrinsically safe and explosion-proof applications because it does not require a load capacitor to be stable. The REF30xx is specified over the extended industrial temperature range of –40°C to +125°C.

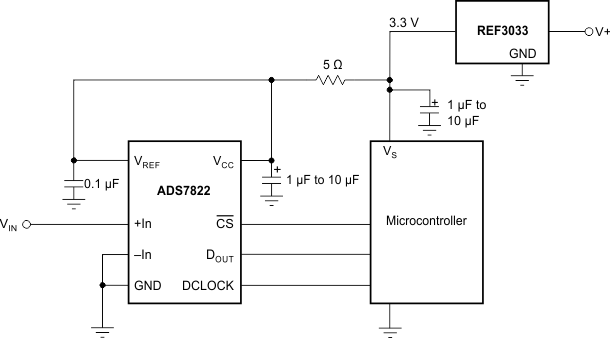

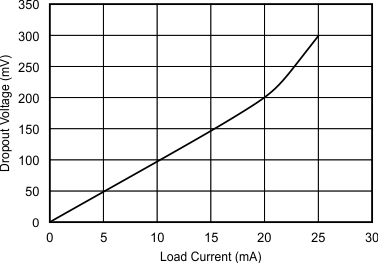

The REF30xx operates with supplies within 1 mV of output voltage under zero-load conditions. The low dropout along with small size and low power consumption make The REF30xx ideal for portable and battery-powered applications.
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| REF30xx | SOT-23 (3) | 2.92 mm × 1.30 mm |
