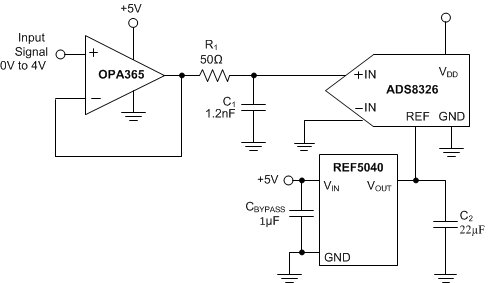

REF5045 - 产品图解：
REF5045-低噪声、极低漂移、高精度电压基准
REF5045-串联电压基准-电压基准-电源管理
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - REF5045介绍

REF5045 - 低噪声、极低漂移、高精度电压基准

REF5045是TI德州仪器公司的一款串联电压基准产品，REF5045是低噪声、极低漂移、高精度电压基准，本站介绍了REF5045的封装应用图解、特点和优点、功能等，并给出了与REF5045相关的TI元器件型号供参考。

REF5045 - 低噪声、极低漂移、高精度电压基准 - 串联电压基准 - 电压基准 - 德州仪器

产品特性
  • Low Temperature Drift:
    • High-Grade: 3 ppm/°C (Maximum)
    • Standard-Grade: 8 ppm/°C (Maximum)
  • High Accuracy:
    • High-Grade: 0.05% (Maximum)
    • Standard-Grade: 0.1% (Maximum)
  • Low Noise: 3 μVPP/V
  • Excellent Long-term Stability:
    • 45 ppm/1000 hr (typ) after 1000 Hours
  • High-Output Current: ±10 mA
  • Temperature Range: –40°C to 125°C
产品应用
  • 16-Bit Data Acquisition Systems
  • ATE Equipment
  • Industrial Process Controls
  • Medical Instrumentation
  • Pressure and Temperature Transmitters
  • Seismic monitoring systems
产品说明

The REF50xx is a family of low-noise, low-drift, very high precision voltage references. These references are capable of both sinking and sourcing current, and have excellent line and load regulation.

Excellent temperature drift (3 ppm/°C) and high accuracy (0.05%) are achieved using proprietary design techniques. These features, combined with very low noise, make the REF50xx family ideal for use in high-precision data acquisition systems.

Each reference voltage is available in both standard- and high-grade versions. They are offered in MSOP-8 and SO-8 packages, and are specified from –40°C to 125°C.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
REF50xxSOIC (8)4.90 mm × 3.91 mm
VSSOP (8)3.00 mm × 3.00 mm
