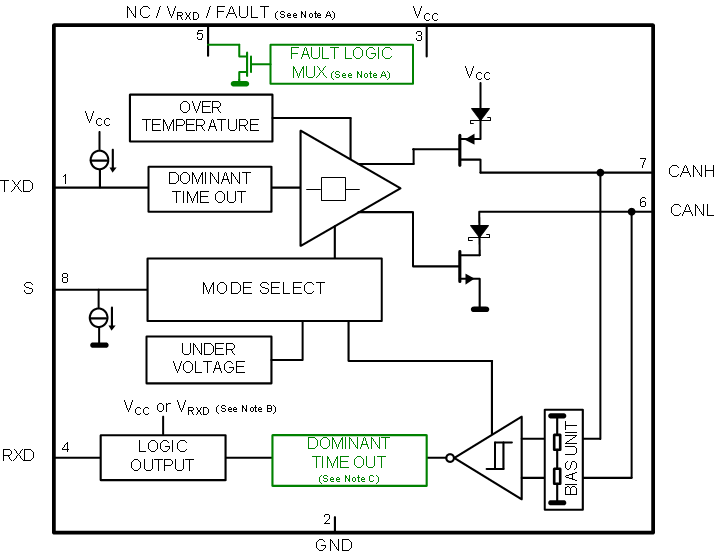

SN65HVD267 - 产品图解：
SN65HVD267-含快速循环次数的 CAN 收发器，用于具有灵活数据速率的 CAN
SN65HVD267--CAN收发器-接口
TI芯片：
承诺原装正品
专营TI德州仪器，真正优化您的供应链
TI产品 - SN65HVD267介绍

SN65HVD267 - 含快速循环次数的 CAN 收发器，用于具有灵活数据速率的 CAN

SN65HVD267是TI德州仪器公司的一款无产品，SN65HVD267是含快速循环次数的 CAN 收发器，用于具有灵活数据速率的 CAN，本站介绍了SN65HVD267的封装应用图解、特点和优点、功能等，并给出了与SN65HVD267相关的TI元器件型号供参考。

SN65HVD267 - 含快速循环次数的 CAN 收发器，用于具有灵活数据速率的 CAN - 无 - CAN收发器 - 德州仪器

产品特性
  • Meets the Requirements of ISO11898-2
  • Turbo CAN:
    • Specified for 2-Mbps CAN FD (CAN with Flexible Data Rate)
    • Short and Symmetrical Propagation Delay Times and Fast Loop Times for Enhanced Timing Margin
    • Higher Data Rates in CAN Networks
  • I/O Voltage Range Supports 3.3-V and 5-V MCUs
  • Ideal Passive Behavior When Unpowered
    • Bus and Logic Terminals are High Impedance (no load)
    • Power-Up/Down With Glitch Free Operation On Bus
  • Protection Features
    • HBM ESD Protection Exceeds ±12 kV
    • Bus Fault Protection –27 V to 40 V
    • Undervoltage Protection on Supply Terminals
    • Driver Dominant Time Out (TXD DTO)
    • SN65HVD267: Receiver Dominant Time Out (RXD DTO)
    • SN65HVD267: FAULT Output Terminal
    • Thermal Shutdown Protection
  • Characterized for –40°C to 125°C Operation
产品应用
  • 2-Mbps Operation in CAN with Flexible Data Rate Networks
  • 1-Mbps Operation in Highly Loaded CAN Networks Down to 10-kbps Networks Using TXD DTO
  • Industrial Automation, Control, Sensors and Drive Systems
  • Building, Security and Climate Control Automation
  • Telecom Base Station Status and Control
  • SN65HVD267: Functional Safety With Redundant and Multi-topology CAN networks
  • CAN Bus Standards Such as CANopen, DeviceNet, NMEA2000, ARNIC825, ISO11783, CANaerospace
产品说明

This CAN transceiver meets the ISO1189-2 High Speed CAN (Controller Area Network) physical layer standard. It is designed for data rates in excess of 2 Mpbs (megabits per second) for CAN FD (CAN with flexible data rate), greater than 1 Mbps for CAN in short networks, and enhanced timing margin and higher data rates in long and highly-loaded networks. The device provides many protection features to enhance device and CAN-network robustness. The SN65HVD267 adds additional features, allowing easy design of redundant and multi-topology networks with fault indication for higher levels of safety in the CAN system.

Device Information (1)
PART NUMBERPACKAGEBODY SIZE
SN65HVD26xDSOIC (8)4.90 mm × 3.91 mm
