SN74AHCT574技术文档下载：

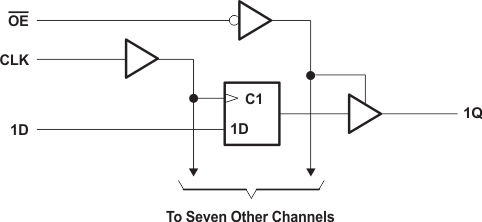

SN74AHCT574 - 产品图解：
SN74AHCT574 - 具有三态输出的八路边沿 D 类触发器
SN74AHCT574是TI公司的一款D类触发器产品，SN74AHCT574是具有三态输出的八路边沿 D 类触发器，本页介绍了SN74AHCT574的产品说明、应用、特性等，并给出了与SN74AHCT574相关的TI元器件型号供参考。
SN74AHCT574 - 具有三态输出的八路边沿 D 类触发器 - D类触发器 - 触发器/锁存器/寄存器 - TI公司（Texas Instruments，德州仪器）
产品特性
- Inputs are TTL-Voltage Compatible
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- On Products Compliant to MIL-PRF-38535, All Parameters are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
产品应用
- Smartphone Handsets
- PDAs
- Network Switches
- Wearable Health and Fitness Devices
- Televisions (LCDs)
- Power Infrastructures
产品说明
The SNx4AHCT574 devices are octal edge-triggered D-type flip-flops that feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads.
产品器件信息
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| SNx4AHCT574 | SSOP (20) | 7.20 mm × 5.30 mm |
| TVSOP (20) | 5.00 mm × 4.40 mm | |
| SOIC (20) | 12.80 mm × 7.50 mm | |
| PDIP (20) | 25.40 mm × 6.35 mm | |
| TSSOP (20) | 6.50 mm × 4.40 mm |
