SN74AVCH4T245 - 具有可配置电压转换和 3 态输出的 4 位双电源总线收发器

SN74AVCH4T245是TI德州仪器公司的一款方向控制电压转换产品，SN74AVCH4T245是具有可配置电压转换和 3 态输出的 4 位双电源总线收发器，本站介绍了SN74AVCH4T245的封装应用图解、特点和优点、功能等，并给出了与SN74AVCH4T245相关的TI元器件型号供参考。

SN74AVCH4T245 - 具有可配置电压转换和 3 态输出的 4 位双电源总线收发器 - 方向控制电压转换 - 电压电平转换 - 德州仪器

产品特性

Control Inputs VIH/VIL Levels are Referenced to VCCA Voltage
Fully Configurable Dual-Rail Design Allows Each Port to Operate Over the Full 1.2V to 3.6V Power-Supply Range
I/Os Are 4.6V Tolerant
Ioff Supports Partial Power-Down-Mode Operation
Bus Hold on Data Inputs Eliminates the Need for External pull-up/pull-down Resistors
Max Data Rates
- 380 Mbps (1.8 V to 3.3 V Translation)
- 200 Mbps (<1.8 V to 3.3 V Translation)
- 200 Mbps (Translate to 2.5 V or 1.8 V)
- 150 Mbps (Translate to 1.5 V)
- 100 Mbps (Translate to 1.2 V)
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 8000 V Human Body Model (A114-A)
- 200 V Machine Model (A115-A)
- 1000 V Charged-Device Model (C101)

产品应用

Personal Electronics
Industrial
Enterprise
Telecom

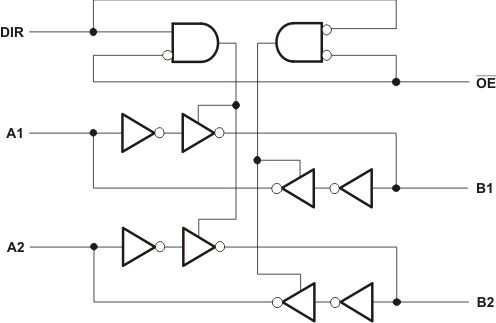

Logic Diagram (Positive Logic) for 1/2 of AVCH4T245

产品说明

This 4-bit noninverting bus transceiver uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.2 V to 3.6 V. The SN74AVCH4T245 is optimized to operate with VCCA/VCCB set at 1.4 V to 3.6 V. It is operational with VCCA/VCCB as low as 1.2 V. This allows for universal low voltage bidirectional translation between any of the 1.2V, 1.5V, 1.8V, 2.5V, and 3.3V voltage nodes.

The SN74AVCH4T245 is designed for asynchronous communication between two data buses. The logic levels of the direction-control (DIR) input and the output-enable (OE) input activate either the B-port outputs or the A-port outputs or place both output ports into the high-impedance mode. The device transmits data from the A bus to the B bus when the B-port outputs are activated, and from the B bus to the A bus when the A-port outputs are activated. The input circuitry on both A and B ports is always active and must have a logic HIGH or LOW level applied to prevent excess ICC and ICCZ.

The SN74AVCH4T245 device control pins (1DIR, 2DIR, 1OE, and 2OE) are supplied by VCCA.

This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
SN74AVCH4T245	UQFN (16)	1.80 mm × 2.60 mm
	VQFN (16)	3.50 mm × 4.00 mm
	TVSOP (16)	4.40 mm × 3.60 mm
	TSSOP (16)	4.40 mm × 5.00 mm
	SOIC (16)	3.91 mm × 9.90 mm
