SN74LV74A技术文档下载：

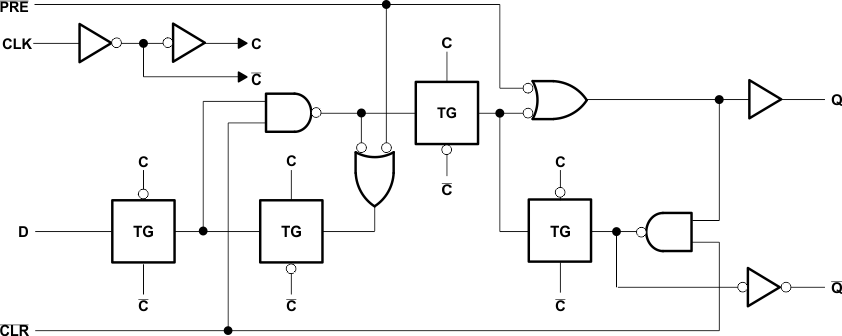

SN74LV74A - 产品图解：
SN74LV74A - 双路上升沿 D 类触发器
SN74LV74A是TI公司的一款D类触发器产品，SN74LV74A是双路上升沿 D 类触发器，本页介绍了SN74LV74A的产品说明、应用、特性等，并给出了与SN74LV74A相关的TI元器件型号供参考。
SN74LV74A - 双路上升沿 D 类触发器 - D类触发器 - 触发器/锁存器/寄存器 - TI公司（Texas Instruments，德州仪器）
产品特性
- 2-V to 5.5-V VCC Operation
- Maximum tpd of 8.5 ns at 5 V
- Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C
- Typical VOHV (Output VOH Undershoot) > 2.3 V at VCC = 3.3 V, TA = 25°C
- Support Mixed-Mode Voltage Operation on All Ports
- Ioff Supports Partial-Power-Down Mode Operation
- Latch-up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 500-V Charged-Device Model (C101)
产品应用
- Programmable Logic Controller (PLC)
- DCS and PAC: Analog Input Module
- AV Receiver
- Server PSU
- STB, DVR, and Streaming Media (Withdraw)
- Server Motherboard
产品说明
These dual positive-edge-triggered D-type flip-flops are designed for 2-V to 5.5-V VCC operation.
产品器件信息
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| SN74LV74A | VQFN (14) | 3.50 mm × 3.50 mm |
| SOIC (14) | 8.65 mm × 3.91 mm | |
| SOP (14) | 10.30 mm × 5.30 mm | |
| SSOP (14) | 6.20 mm × 5.30 mm | |
| TSSOP (14) | 5.00 mm × 4.40 mm |
