SN74LVC16374A技术文档下载：

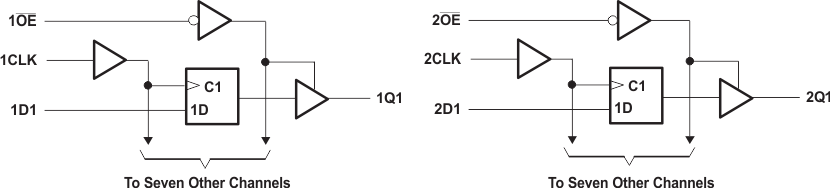

SN74LVC16374A - 产品图解：
SN74LVC16374A - 具有三态输出的 16 位边沿触发 D 类触发器
SN74LVC16374A是TI公司的一款D类触发器产品，SN74LVC16374A是具有三态输出的 16 位边沿触发 D 类触发器，本页介绍了SN74LVC16374A的产品说明、应用、特性等，并给出了与SN74LVC16374A相关的TI元器件型号供参考。
SN74LVC16374A - 具有三态输出的 16 位边沿触发 D 类触发器 - D类触发器 - 触发器/锁存器/寄存器 - TI公司（Texas Instruments，德州仪器）
产品特性
- Member of the Texas Instruments Widebus™ Family
- Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25°C
- Typical VOHV (Output VOH Undershoot) >2 V at VCC = 3.3 V, TA = 25°C
- Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
- Supports Mixed-Mode Signal Operation on All Ports (5-V Input and Output Voltages With 3.3-V VCC)
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 1000-V Charged-Device Model (C101)
产品应用
- Servers
- PCs and Notebooks
- Network Switches
- Electronic Points of Sale
Description
This 16-bit edge-triggered D-type flip-flop is designed for 1.65-V to 3.6-V VCC operation.
产品器件信息
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| SN74LVC16374A | SSOP (48) | 15.80 mm × 7.50 mm |
| TSSOP (48) | 12.50 mm × 6.10 mm | |
| TVSOP (48) | 9.70 mm × 4.40 mm |
