SN75DP126 - 具有 TMDS 转换器的 DisplayPort 1:2 转接驱动器开关

SN75DP126是TI德州仪器公司的一款显示端口产品，SN75DP126是具有 TMDS 转换器的 DisplayPort 1:2 转接驱动器开关，本站介绍了SN75DP126的封装应用图解、特点和优点、功能等，并给出了与SN75DP126相关的TI元器件型号供参考。

SN75DP126 - 具有 TMDS 转换器的 DisplayPort 1:2 转接驱动器开关 - 显示端口 - 显示和成像串行器/解串器 - 德州仪器

产品特性

One Dual-Mode DisplayPort™ (DP++) Input; Switchable to One DP++ Output or One TMDS Output Compatible with HDMI 1.4b and DVI
Supports DP v1.1a and DP v1.2 Signaling Including HBR2 Data Rates to 5.4 Gbps
Supports HDMI 1.4b with TMDS Clock Frequencies up to 340 MHz with 10 m Cable
Glue-less interface to AMD, Intel, and NVIDIA Graphics Processors
Auto-Configuration Through Link Training for DisplayPort Connection
Integrated DDC-Accessible DP-HDMI Adaptor ID for HDMI/DVI Sink Recognition
Output Signal Conditioning with Tunable Voltage Swing and Pre-Emphasis Gain for both DisplayPort and TMDS Outputs
Highly-Configurable Input-Variable Equalizer
Two Device Options Including a Dual Power-Supply Configuration for Lowest Power
2-kV ESD HBM Protection
Temperature Range: 0°C to 85°C
56-Pin 5-mm x 11-mm QFN Package

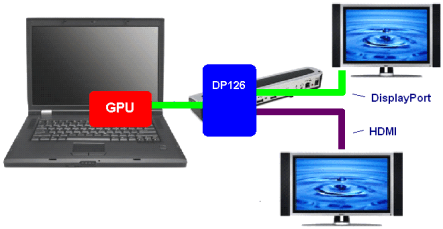

产品应用

Notebook PC
Desktop PC
PC Docking Station
PC Standalone Video Card

产品说明

The SN75DP126 switches one Dual-Mode DisplayPort (DP++) input to one Dual-Mode DisplayPort (DP++) sink output or one HDMI/DVI sink output. The HDMI/DVI output has a built-in level translator compliant with DVI 1.0 and HDMI 1.4b standard TMDS signaling, and is specified up to a maximum data rate of 3.4 Gbps, supporting resolutions greater than 1920 X 1440 and HDTV deep color at 1080p. An integrated DP-HDMI Adaptor ID buffer can be accessed when the HDMI/DVI sink is selected to indicate support for HDMI signaling.

The device compensates for PCB-related frequency loss and switching-related loss to provide the optimum electrical performance from source to sink. The DP++ Main Link signal inputs feature-configurable equalizers with selectable boost settings.

At the SN75DP126 DP++ Main Link output, four primary levels of differential output voltage (VOD) swing and four primary levels of pre-emphasis are available as well as a secondary level of boost adjustment, programmed through I2C, for fine-tuning the Main Link output. The device can monitor the AUX channel and automatically adjust output signaling levels and input equalizers based on DP Link Training commands.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
SN75DP126	WQFN (56)	11.00 mm × 5.00 mm
