TCA9539-Q1 - 低压 16 位 I2C 和 SMBus 低功耗 I/O 扩展器，TCA9539-Q1

TCA9539-Q1是TI德州仪器公司的一款I2CIO扩展器产品，TCA9539-Q1是低压 16 位 I2C 和 SMBus 低功耗 I/O 扩展器，TCA9539-Q1，本站介绍了TCA9539-Q1的封装应用图解、特点和优点、功能等，并给出了与TCA9539-Q1相关的TI元器件型号供参考。

TCA9539-Q1 - 低压 16 位 I2C 和 SMBus 低功耗 I/O 扩展器，TCA9539-Q1 - I2CIO扩展器 - I2C - 德州仪器

产品特性

Qualified for Automotive Applications
I2C to Parallel Port Expander
Low Standby-Current Consumption of 3μAMax
Open-Drain Active-Low Interrupt Output
Active-Low Reset Input
5-V Tolerant I/O Ports
Compatible With Most Microcontrollers
400-kHz Fast I2C Bus
Input/Output Configuration Register
Polarity Inversion Register
Internal Power-on-Reset
No Glitch on Power Up
Noise Filter on SCL/SDA Inputs
Address by Two Hardware Address Pins for Use of up to Four Devices
Latched Outputs With High-Current Drive Capability for Directly Driving LEDs
Latch-Up Performance Exceeds 100mA Per JESD78, ClassII
ESD Protection Exceeds JESD22
- 2000-V Human-Body Model (A114-A)
- 1000-V Charged-Device Model (C101)

产品应用

Automotive infotainment, Advanced Driver Assistance Systems (ADAS), Automotive body electronics, HEV/EV & Powertrain
Industrial automation, Factory automation, Building automation, Test & measurement, EPOS
I2C GPIO expansion

产品说明

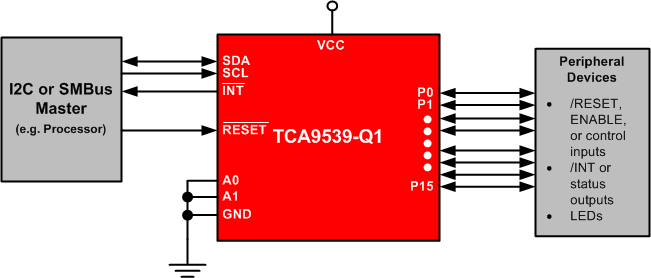

The TCA9539-Q1 is a 24-pin device that provides 16 bits of general purpose parallel input/output (I/O) expansion for the two-line bidirectional I2C bus (or SMBus protocol). The device can operate with a power supply voltage (VCC) range from 1.65 V to 3.6 V. The device supports 100-kHz (I2C Standard mode) and 400-kHz (I2C Fast mode) clock frequencies. I/O expanders such as the TCA9539-Q1 provide a simple solution when additional I/Os are needed for switches, sensors, push-buttons, LEDs, fans, and other similar devices.

The features of the TCA9539-Q1 include an interrupt that is generated on the INT pin whenever an input port changes state. The A0 and A1 hardware selectable address pins allow up to four TCA9539-Q1 devices on the same I2C bus. The device can be reset to its default state by cycling the power supply and causing a power-on-reset. Also, the TCA9539-Q1 has a hardware RESET pin that can be used to reset the device to its default state.

The TCA9539-Q1 I2C I/O expander is qualified for automotive applications.

产品器件信息

PART NUMBER	PACKAGE TYPE	BODY SIZE (NOM)
TCA9539-Q1	TSSOP (24)	7.80 mm x 4.40 mm
