TL499A是TI公司的一款转换器（集成开关）产品，TL499A是宽电压范围电源控制器，本页介绍了TL499A的产品说明、应用、特性等，并给出了与TL499A相关的TI元器件型号供参考。
TL499A - 宽电压范围电源控制器 - 转换器（集成开关） - DC/DC开关稳压器 - TI公司（Texas Instruments，德州仪器）
- Internal Series-Pass and Step-Up Switching Regulator
- Output Adjustable From 2.9 V to 30 V
- 1-V to 10-V Input for Switching Regulator
- 4.5-V to 32-V Input for Series Regulator
- Externally Controlled Switching Current
- No External Rectifier Required
- Voltage Boosting
- Dual-Supply Voltage Reglation
- Battery Back-Ups
- Microprocessor Memory Power

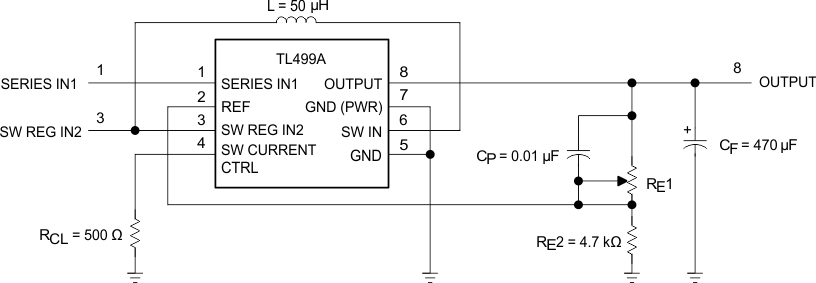

The TL499A device is an integrated circuit designed to provide a wide range of adjustable regulated supply voltages. The regulated output voltage can be varied from 2.9 V to 30 V by adjusting two external resistors. When the TL499A is ac-coupled to line power through a step-down transformer, it operates as a series DC voltage regulator to maintain the regulated output voltage. With the addition of a battery from 1.1 V to 10 V, an inductor, a filter capacitor, and two resistors, the TL499A operates as a step-up switching regulator during an AC-line failure. The adjustable regulated output voltage makes the TL499A useful for a wide range of applications. Providing backup power during an AC-line failure makes the TL499A extremely useful in microprocessor memory applications. The TL499AC is characterized for operation from –20°C to +85°C.
| PART NUMBER | PACKAGE (PIN) | BODY SIZE (NOM) |
|---|---|---|
| TL499A | SO (8) | 6.20 mm × 5.30 mm |
| PDIP (8) | 9.81 mm × 6.35 mm |
