TLC5926 - 16 位恒流下沉式 LED 驱动器

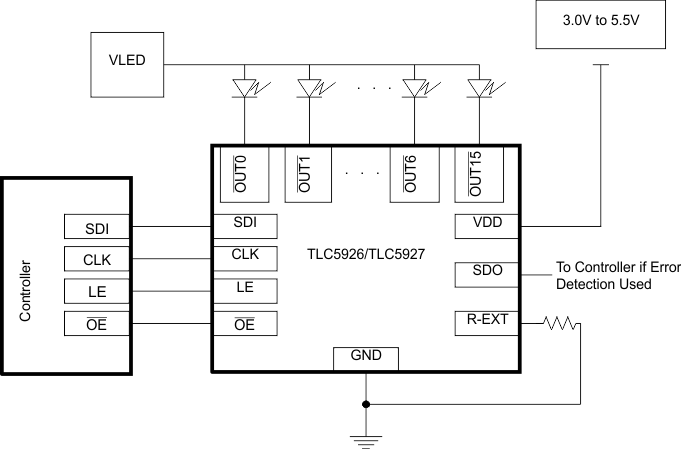

TLC5926是TI德州仪器公司的一款标牌/线性产品，TLC5926是16 位恒流下沉式 LED 驱动器，本站介绍了TLC5926的封装应用图解、特点和优点、功能等，并给出了与TLC5926相关的TI元器件型号供参考。

TLC5926 - 16 位恒流下沉式 LED 驱动器 - 标牌/线性 - LED驱动器 - 德州仪器

产品特性

16 Constant-Current Output Channels
Output Current Adjusted By External Resistor
Constant Output Current Range: 5mA to 120mA
Constant Output Current Invariant to Load Voltage Change
Open-Load and Shorted-Load Detection
256-Step Programmable Global Current Gain
Excellent Output Current Accuracy:
- Between Channels: < ±6% (Max), 10mAto50mA
- Between ICs: < ±6% (Max), 10mAto50mA
30-MHz Maximum Clock Frequency
Schmitt-Trigger Input
3.3-V or 5-V Supply Voltage
Thermal Shutdown for Overtemperature Protection

产品应用

General LED Lighting Applications
LED Display Systems
LED Signage
Automotive LED Lighting
White Goods

产品说明

The TLC592x is designed for LED displays and LED lighting applications with open-load, shorted-load, and over temperature detection, and constant-current control. The TLC592x contains a 16-bit shift register and data latches, which convert serial input data into parallel output format. At the TLC592x output stage, 16 regulated-current ports provide uniform and constant current for driving LEDs within a wide range of VF (forward voltage) variations. Used in systems designed for LED display applications (for example, LED panels), TLC592x provides great flexibility and device performance. Users can adjust the output current from 5mA to 120mA through an external resistor, Rext, which gives flexibility in controlling the light intensity of LEDs. The TLC592x is designed for up to 17V at the output port. The high clock frequency, 30 MHz, also satisfies the system requirements of high-volume data transmission.

Device Information (1)

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TLC5926	SSOP (24)	8.65 mm × 3.90 mm
	SOIC (24)	15.40 mm × 7.50 mm
	HTSSOP (24)	7.80 mm × 4.40 mm
TLC5927	SSOP (24)	8.65 mm × 3.90 mm
	SOIC (24)	15.40 mm × 7.50 mm
	HTSSOP (24)	7.80 mm × 4.40 mm
