TLV320AIC3256 - 具有 miniDSP 和 DirectPath(TM) 耳机放大器的超低功耗立体声编解码器
TLV320AIC3256是TI公司的一款音频编解码器产品,TLV320AIC3256是具有 miniDSP 和 DirectPath(TM) 耳机放大器的超低功耗立体声编解码器,本页介绍了TLV320AIC3256的产品说明、应用、特性等,并给出了与TLV320AIC3256相关的TI元器件型号供参考。
TLV320AIC3256 - 具有 miniDSP 和 DirectPath(TM) 耳机放大器的超低功耗立体声编解码器 - 音频编解码器 - 音频转换器 - TI公司(Texas Instruments,德州仪器)
产品特性
- Stereo Audio DAC with 100dB SNR
- 5.0mW Stereo 48ksps DAC-to-Ground-Centered Headphone Playback
- Stereo Audio ADC with 93dB SNR
- 5.2mW Stereo 48ksps ADC Record
- PowerTune™
- Extensive Signal Processing Options
- Embedded miniDSP
- Six Single-Ended or 3 Fully-Differential Analog Inputs
- Stereo Analog and Digital Microphone Inputs
- Ground-Centered Stereo Headphone Outputs
- Very Low-Noise PGA
- Low Power Analog Bypass Mode
- Programmable Microphone Bias
- Programmable PLL
- 5mm x 5mm 40-pin QFN Package or 3.5mm x 3.3mm 42-ball WCSP
产品应用
- Portable Navigation Devices (PND)
- Portable Media Player (PMP)
- Mobile Handsets
- Communication
- Portable Computing
- Advanced DSP algorithms
产品说明

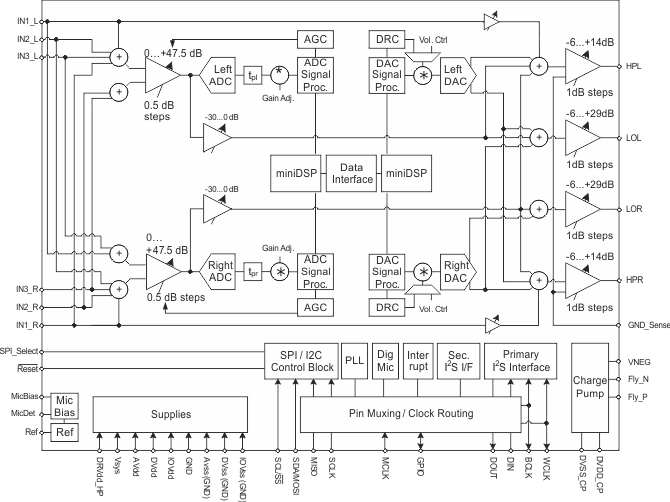

The TLV320AIC3256 (also called the AIC3256) is a flexible, low-power, low-voltage stereo audio codec with programmable inputs and outputs, PowerTune capabilities, fully-programmable miniDSP, fixed predefined and parameterizable signal processing blocks, integrated PLL, and flexible digital interfaces.
产品器件信息
PART NUMBER | PACKAGE | BODY SIZE (NOM) |
---|---|---|
TLV320AIC3256 | WQFN (40) | 5.00 mm x 5.00 mm |
DSBGA (42) | 3.49 mm x 3.29 mm |
