TLV704 - 24V 输入电压、150mA、超低IQ 低压降稳压器

TLV704是TI德州仪器公司的一款单通道LDO产品，TLV704是24V 输入电压、150mA、超低IQ 低压降稳压器，本站介绍了TLV704的封装应用图解、特点和优点、功能等，并给出了与TLV704相关的TI元器件型号供参考。

TLV704 - 24V 输入电压、150mA、超低IQ 低压降稳压器 - 单通道LDO - 线性稳压器(LDO) - 德州仪器

产品特性

Wide Input Voltage Range: 2.5 V to 24 V
Low 3.2-μA Quiescent Current
Ground Pin Current: 3.4 μA at 100-mA IOUT
Stable With a Low-ESR, 1-µF Typical Output Capacitor
Operating Junction Temperature: –40°C to 125°C
Available in SOT23-5 Package
- See Package Option Addendum at end of this document for complete list of available voltage options

产品应用

Ultralow Power Microcontrollers
E-Meters
Fire Alarms and Smoke Detector Systems
Handset Peripherals
Industrial and Automotive Applications
Remote Controllers
Zigbee® Networks
Portable, Battery-Powered Equipment

产品说明

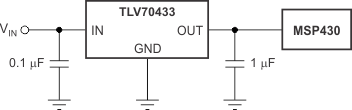

The TLV704 series of low-dropout (LDO) regulators are ultralow quiescent current devices designed for extremely power-sensitive applications. Quiescent current is virtually constant over the complete load current and ambient temperature range. These devices are an ideal power-management attachment to low-power microcontrollers, such as the MSP430.

The TLV704 operates over a wide operating input voltage of 2.5 V to 24 V. Thus, the device is an excellent choice for both battery-powered systems as well as industrial applications that undergo large line transients.

The TLV704 is available in a 3-mm × 3-mm SOT23-5 package, which is ideal for cost-effective board manufacturing.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (nom)
TLV704	SOT-23 (5)	2.90 mm x 1.60 mm
