TPD4F003 - 具有集成 ESD 保护的 4 通道 EMI 滤波器

TPD4F003是TI德州仪器公司的一款集成ESD保护产品，TPD4F003是具有集成 ESD 保护的 4 通道 EMI 滤波器，本站介绍了TPD4F003的封装应用图解、特点和优点、功能等，并给出了与TPD4F003相关的TI元器件型号供参考。

TPD4F003 - 具有集成 ESD 保护的 4 通道 EMI 滤波器 - 集成ESD保护 - ESD保护二极管 - 德州仪器

产品特性

Four-, Six-, and Eight-Channel EMI Filtering for Data Ports
–3 dB Bandwidth of 200 MHz
Greater than 25 dB attenuation at 1 GHz
IEC 61000-4-2 Level 4 ESD Protection
- ±12-kV Contact Discharge
- ±20-kV Air Gap Discharge

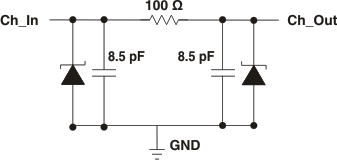

Pi-Style (C-R-C) Filter Configuration (R = 100 Ω, CTOTAL = 17 pF)
Low 10-nA Leakage Current
Easy Flow-Through Routing

产品应用

Display Interfaces
Cell Phones
Tablets
SVGA Video Connections
Memory Interfaces

产品说明

The TPDxF003 family is a series of highly integrated devices designed to provide Electromagnetic Interference (EMI) filtering in all systems subjected to electromagnetic interference. These filters also provide a Transient Voltage Suppressor (TVS) diode circuit for Electrostatic Discharge (ESD) protection which prevents damage to the application when subjected to ESD stress far exceeding IEC 61000-4-2 (Level 4).

The TPDxF003 family is specified for –40°C to 85°C operation. These filters are also packaged in space-saving 0.4-mm pitch DQD packages.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TPD4F003	WSON (8)	1.70 mm x 1.35 mm
TPD6F003	WSON (12)	2.50 mm x 1.35 mm
TPD8F003	WSON (16)	3.30 mm x 1.35 mm
