TPS22934 - 具有快速输出放电和导通引脚滞后功能的 3.6V，1A，63mΩ 负载开关

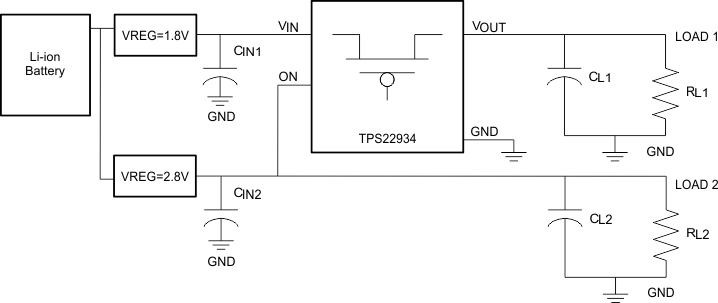

TPS22934是TI德州仪器公司的一款配电与蓄电产品，TPS22934是具有快速输出放电和导通引脚滞后功能的 3.6V，1A，63mΩ 负载开关，本站介绍了TPS22934的封装应用图解、特点和优点、功能等，并给出了与TPS22934相关的TI元器件型号供参考。

TPS22934 - 具有快速输出放电和导通引脚滞后功能的 3.6V，1A，63mΩ 负载开关 - 配电与蓄电 - 集成负载开关 - 德州仪器

产品特性

Integrated Single Channel Load Switch
Input Voltage: 1.5 V to 3.6 V
ON-Resistance
- rDS(ON) = 63 mΩ at VIN = 3.6 V
- rDS(ON) = 69 mΩ at VIN = 2.5 V
- rDS(ON) = 78 mΩ at VIN = 1.8 V
- rDS(ON) = 87 mΩ at VIN = 1.5 V
1-A Maximum Continuous Switch Current
Integrated Hysteresis Enable Input (ON Pin) Allows Easy Power-Rail Sequencing
Controlled Slew Rate Option: 26 µs at 3.6 V
Quick Output Discharge Transistor
Ultra-Small CSP-4 Package
ESD Performance Tested Per JESD 22
- 3000-V Human-Body Model (A114-B, Class II)
- 1000-V Charged-Device Model (C101)

产品应用

Battery-Powered Equipment
Portable Industrial Equipment
Portable Medical Equipment
Portable Media Players
Point-of-Sales Terminals
GPS Devices
Digital Cameras
Portable Instrumentation
Smart Phones

产品说明

The TPS22934 is a small, low ON-resistance (rON) load switch with controlled turnon. The devices contain a P-channel MOSFETs that can operate over an input voltage range of 1.5 V to 3.6 V.

The switch is controlled by an ON/OFF input (ON), which has built-in hysteresis (VTH+(typ) = 2.35 V) allowing an easy use of TPS22934 in power-rail sequencing applications.

In the TPS22934 a 35-Ω on-chip load resistor is added for output quick discharge when switch is turned off.

In the TPS22934, the rise time of the device is internally controlled to avoid inrush current. The TPS22934 features a typical rise time of 26 µs with a 3.6-V input.

The the TPS22934 is available in an ultra-small space-saving 4-pin CSP package and is characterized for operation over the free-air temperature range of –40ºC to 85ºC.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TPS22934	DSBGA (4)	0.90 mm × 0.90 mm
