TPS2413 - Low Pin Count N+1 and ORing Power Rail Controller

TPS2413是TI德州仪器公司的一款无产品，TPS2413是Low Pin Count N+1 and ORing Power Rail Controller，本站介绍了TPS2413的封装应用图解、特点和优点、功能等，并给出了与TPS2413相关的TI元器件型号供参考。

TPS2413 - Low Pin Count N+1 and ORing Power Rail Controller - 无 - ORing和智能二极管 - 德州仪器

产品特性

Control External FET for N+1 and ORing
Wide Supply Voltage Range of 3 V to 16.5 V
Controls Buses From 0.8 V to 16.5 V
Linear or On/Off Control Method
Internal Charge Pump for N-Channel MOSFET
Rapid Device Turnoff Protects Bus Integrity
Positive Gate Control on Hot Insertion
Soft Turnon Reduces Bus Transients
Industrial Temperature Range: –40°C to 85°C
8-Pin TSSOP and SOIC Packages

产品应用

N+1 Power Supplies
Server Blades
Telecom Systems
High Availability Systems

产品说明

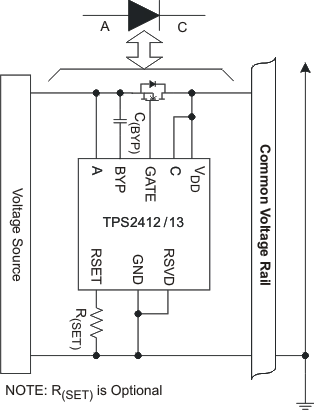

The TPS2412/13 controller, in conjunction with an external N-channel MOSFET, emulates the function of a low forward voltage diode. The TPS2412/13 can be used to combine multiple power supplies to a common bus in an N+1 configuration, or to combine redundant input power buses. The TPS2412 provides a linear turnon control while the TPS2413 has an on/off control method.

Applications for the TPS2412/13 include a wide range of systems including servers and telecom. These applications often have either N+1 redundant power supplies, redundant power buses, or both. Redundant power sources must have the equivalent of a diode OR to prevent reverse current during faults and hotplug. A TPS2412/13 and N-channel MOSFET provide this function with less power loss than a schottky diode.

Accurate voltage sensing and a programmable turnoff threshold allows operation to be tailored for a wide range of implementations and bus characteristics. The TPS2412/13 are lower pin count, reduced feature versions of the TPS2410/11.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TPS2412, TPS2413	TSSOP (8)	4.40 mm × 3.00 mm
TPS2412, TPS2413	SOIC (8)	3.91 mm × 4.90 mm
