TPS24711 - 2.5V 至 18V 高效功率限制热插拔控制器

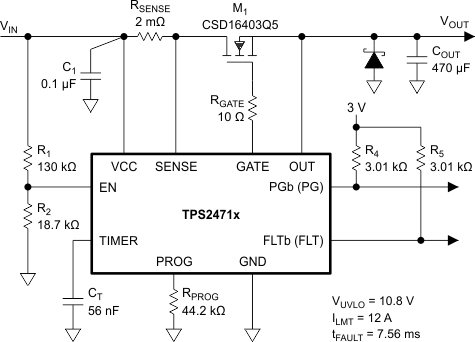

TPS24711是TI德州仪器公司的一款热插拔控制器（正48V)产品，TPS24711是2.5V 至 18V 高效功率限制热插拔控制器，本站介绍了TPS24711的封装应用图解、特点和优点、功能等，并给出了与TPS24711相关的TI元器件型号供参考。

TPS24711 - 2.5V 至 18V 高效功率限制热插拔控制器 - 热插拔控制器（正48V) - 保护、监控和热插拔 - 德州仪器

产品特性

2.5-V to 18-V Operation
Accurate Current Limiting for Startup
Programmable FET SOA Protection
Accurate 25-mV Current-Sense Threshold
Power-Good Output
Fast Breaker for Short-Circuit Protection
Programmable Fault Timer
Programmable UV Threshold
Drop-In Upgrade for LTC4211 – No Layout Changes
PG, FLT Active-High and Active-Low Versions
MSOP-10 Package

产品应用

Server Backplanes
Storage Area Networks (SAN)
Medical Systems
Plug-In Modules
Base Stations

产品说明

The TPS24710/11/12/13 is an easy-to-use, 2.5 V to 18 V, hot-swap controller that safely drives an external N-channel MOSFET. The programmable current limit and fault time protect the supply and load from excessive current at startup. After startup, currents above the user-selected limit will be allowed to flow until programmed timeout – except in extreme overload events when the load is immediately disconnected from source. The low, 25mV current sense threshold is highly accurate and allows use of smaller, more efficient sense resistors yielding lower power loss and smaller footprint.

Programmable power limiting ensures the external MOSFET operates inside its safe operating area (SOA) at all times. This allows the use of smaller MOSFETS while improving system reliability. Power good and fault outputs are provided for status monitoring and downstream load control.

产品器件信息

PART NUMBER	PACKAGE	BODY SIZE (NOM)
TPS24710	SSOP (10)	3.00 mm × 3.00 mm
TPS24711
TPS24712
TPS24713
